Product Data Sheet

www.marathonsp.com

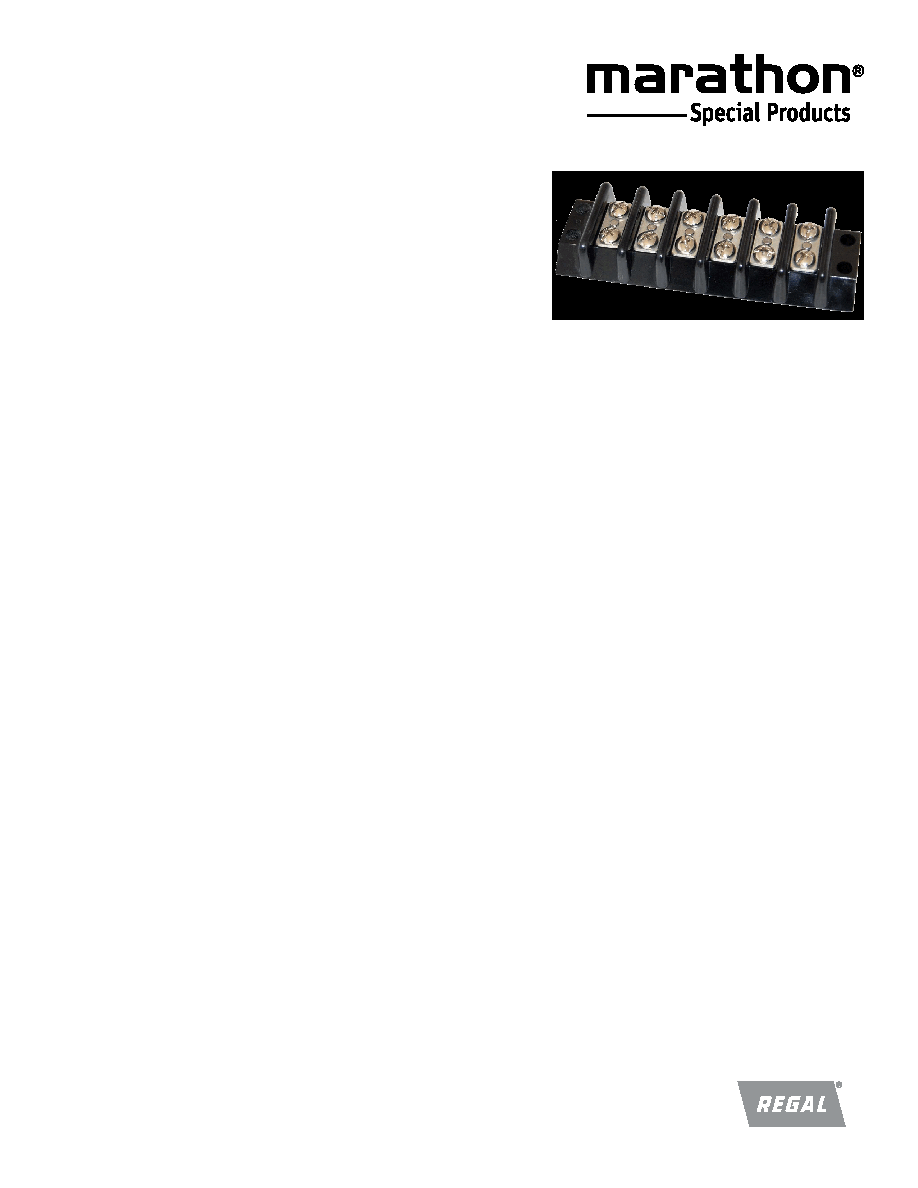

TERMINAL BLOCK, DOUBLE ROW

4XX Series

Wire Range

•

Standard (binding) screws, #10 - #12 AWG copper only, torque 20 lb-in

•

Listed lug (crimp type ring, spade, or fork terminal), #6 - #22 AWG, torque 20lb-in

•

SPSE (SEMS) screw option, #10 - #22 AWG copper only, torque 20b-in

•

PSB screw option, #10 - #22 AWG copper only, torque 20lb-in

Electrical Ratings

•

Amps:

• 30A with unprepared bare wire, (Based on NEC code, 75°C columns)

• 65A with listed lug (ring, spade or fork type crimp terminal)

•

600 Volts AC/DC (UL 1059 Class C, User Group - General Industrial)

•

Short Circuit Current Rating: 10,000A (Default)

•

Approved for Factory and Field Wiring.

Agency Compliance

•

UL Recognized, UL 1059 Terminal Block Standard, File No. XCFR2.E62806

•

CSA Certified, CSA C22.2 No. 158, File No. LR19766

•

CE compliant, IEC 60947-7-1

Material Information

•

Connector (Contact): Brass, tin plated.

•

Insulator base: Phenolic

•

Drive screw (Rivet): Stainless Steel

•

Screw, #10-32 Binder head, Phil-Slot: Steel, nickel plated

Replace “XX” with 01 through 12 for number of poles

11/16 (.688) pitch
