Data Sheet

ADAR5000

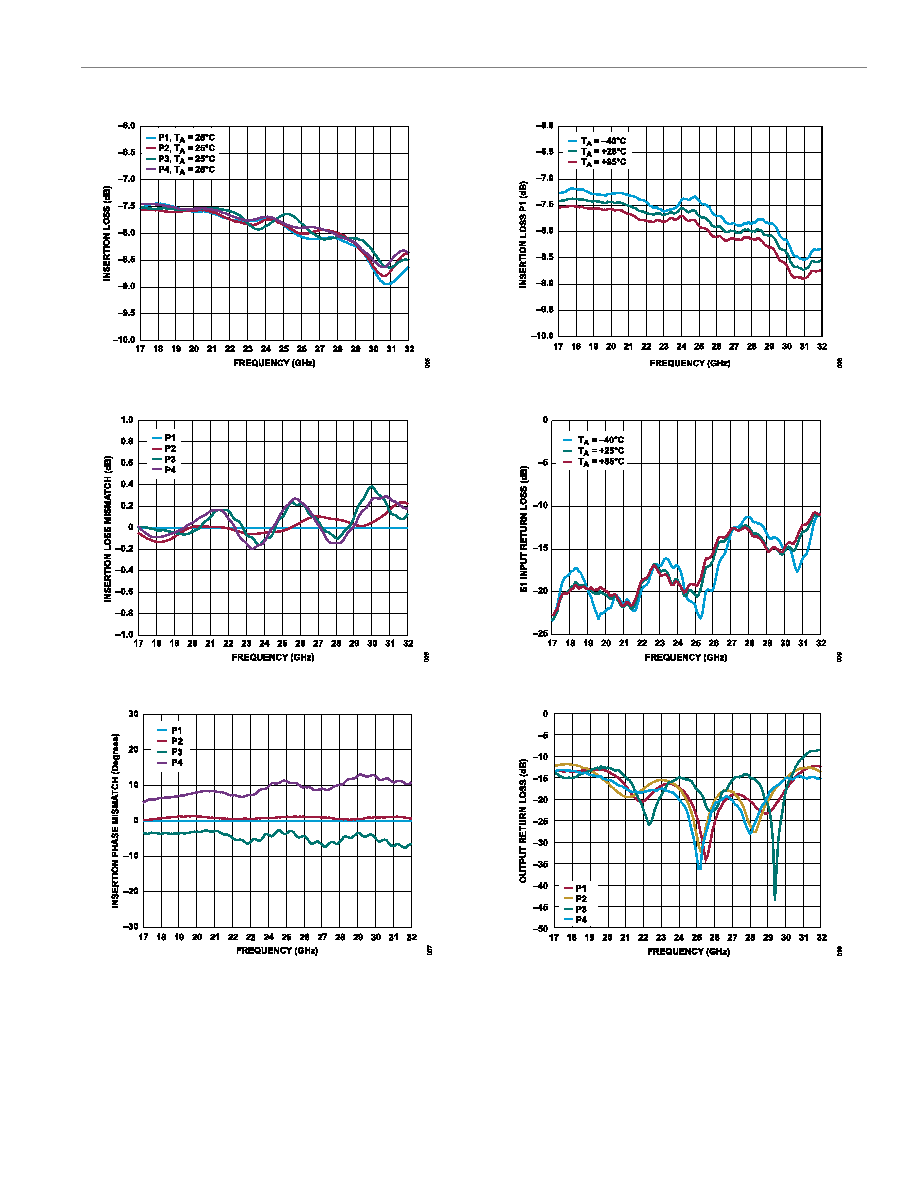

TYPICAL PERFORMANCE CHARACTERISTICS

analog.com

Rev. 0 | 6 of 9

Figure 5. Insertion Loss vs. Frequency

Figure 6. Insertion Loss Mismatch vs. Frequency, All Paths Normalized to P1

Figure 7. Insertion Phase Mismatch vs. Frequency, All Paths Normalized to

P1

Figure 8. Insertion Loss P1 vs. Frequency over Temperature

Figure 9. S1 Input Return Loss vs. Frequency over Temperature

Figure 10. Output Return Loss vs. Frequency (P1, P2, P3, and P4)
