500mV to 5.5V Input nanoPower

Boost Converter with Short-Circuit

Protection

and True Shutdown

MAX18000

www.analog.com

Analog Devices | 6

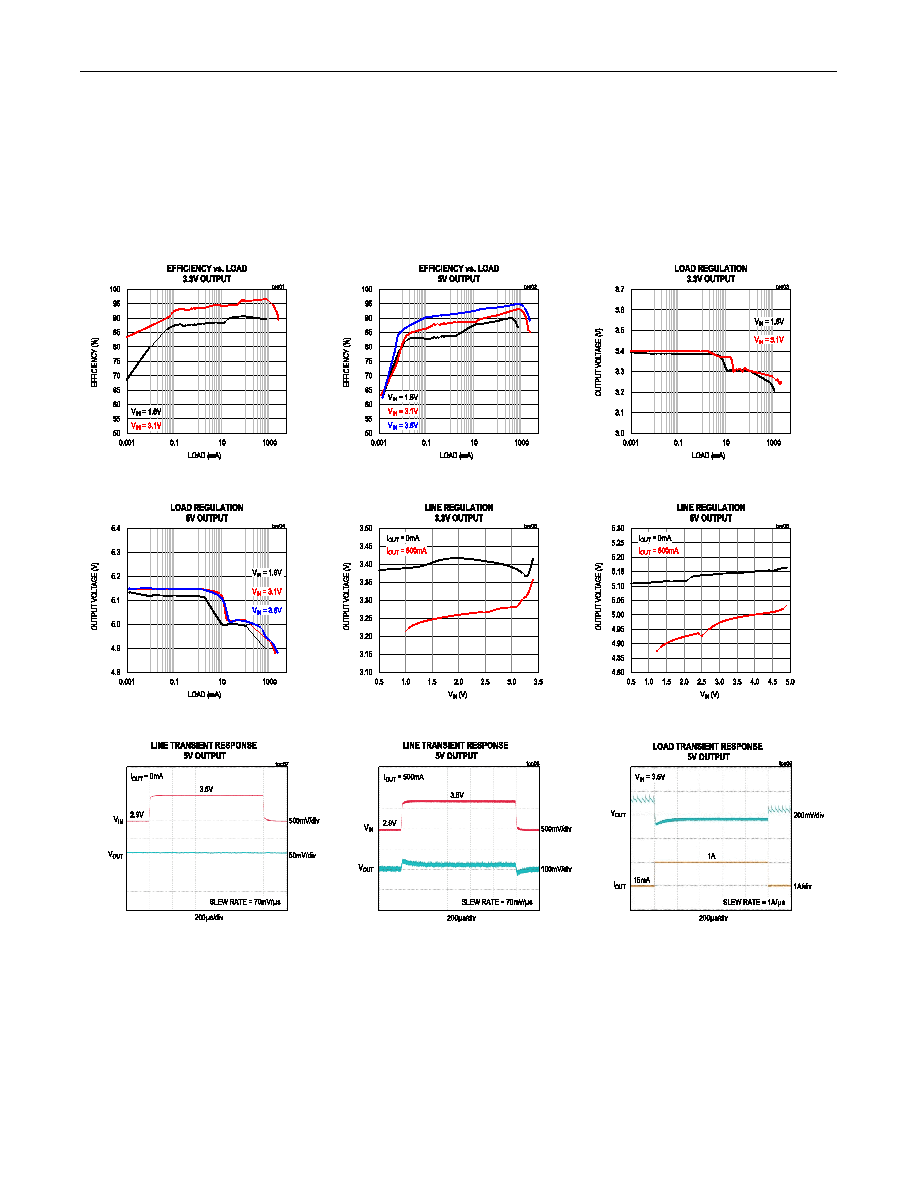

Typical Operating Characteristics

(VIN = 3.6V, VOUT = 5V, L = 470nH (DFE201612E-R47M for VOUT = 5V) and 330nH (DFE201612E-R33M for VOUT = 3.3V), COUT =

2 x 22µF (C1608X5R1A226M080AC), TA = +25°C unless otherwise noted. Measurement is limited by switching the current limit. Actual

maximum output current depends on system thermal performance.)
