MEGA BRIGHT LED

BTL-32NRC-XX-X

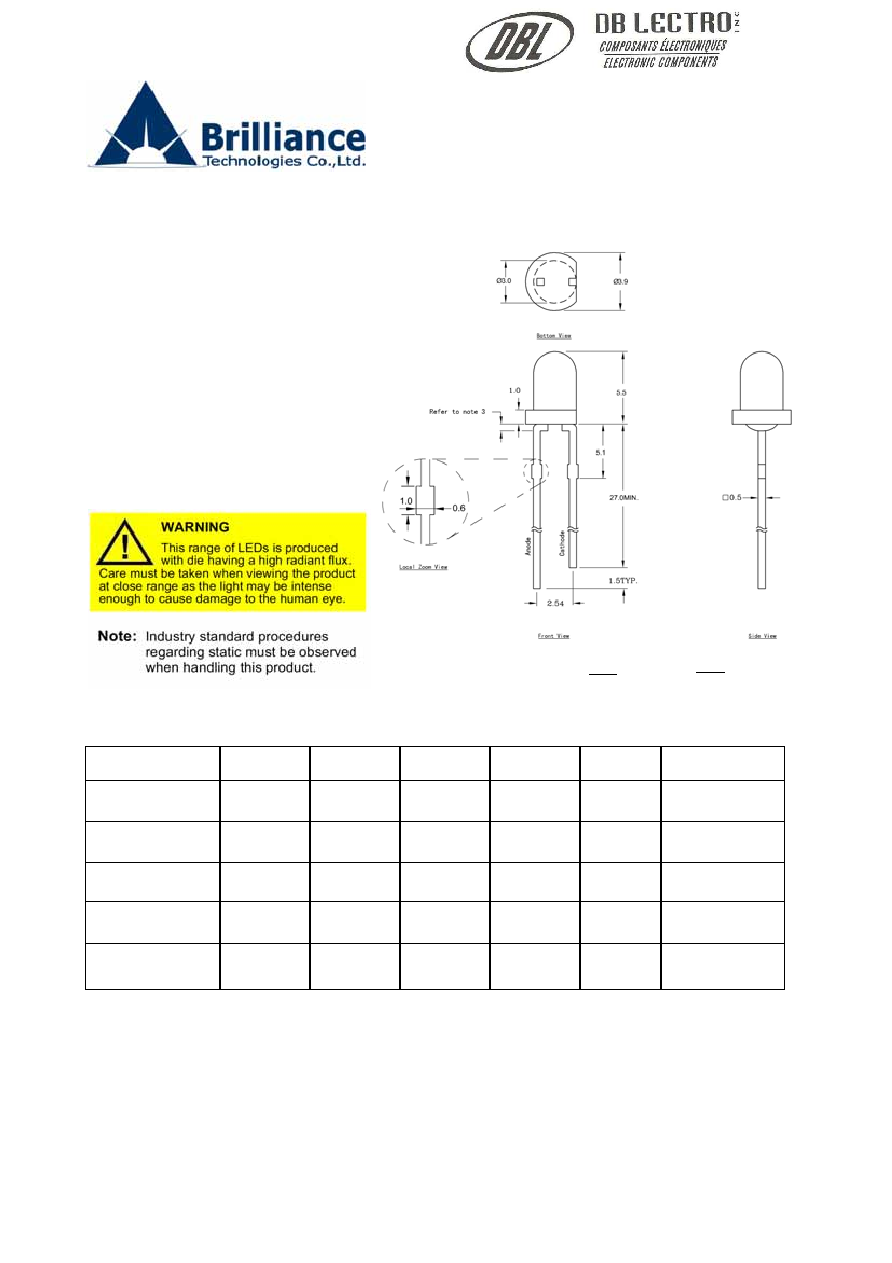

Package Dimension

Product Features

Ultra Bright Normal Red Color

High Light Output

3mm Diameter Circular Package

Water Clear Lens

Highly Reliable

IC Compatible

Leads without Stand Off

Applications

Automotive

Front Panel Indicator

Special Lighting

General Purpose LEDs

Tolerance:

±

Unit:

±

Optical and Electrical Characteristics at Ta=25ºC

Parameter

Symbol

Minimum

Typical

Maximum

Units

Conditions

Luminous

Intensity

Iv

－

1800

－

mcd

IF = 20mA

(Note 1)

Viewing Angle

2θ½

－

30

－

deg

IF = 20mA

Dominant

Wavelength

λ

D

620

625

635

nm

IF = 20mA

(Note 2)

DC Forward

Voltage

VF

1.7

1.9

2.5

V

IF = 20mA

DC Reverse

Current

IR

0

－

10

µA

VR=5V

Notes:

1. Light intensity measures the light sensing response standard using chromatic meter. Refer to the CIE

eye-response curve set by International Lighting committee.

Tolerance of minimum and maximum

intensity = ± 15%

2. Wavelength range can be selected from the bin selection table. Tolerance of minimum and

maximum = ± 2nm

3. These products are sensitive to static electricity and care must be fully taken when handling

products

0.01

0.25

inch

mm

Page 1 of 3
