Data Sheet
ADPA7009-2
BIASING THE ADPA7009-2 WITH THE HMC980LP4E
analog.com
Rev. 0 | 23 of 24

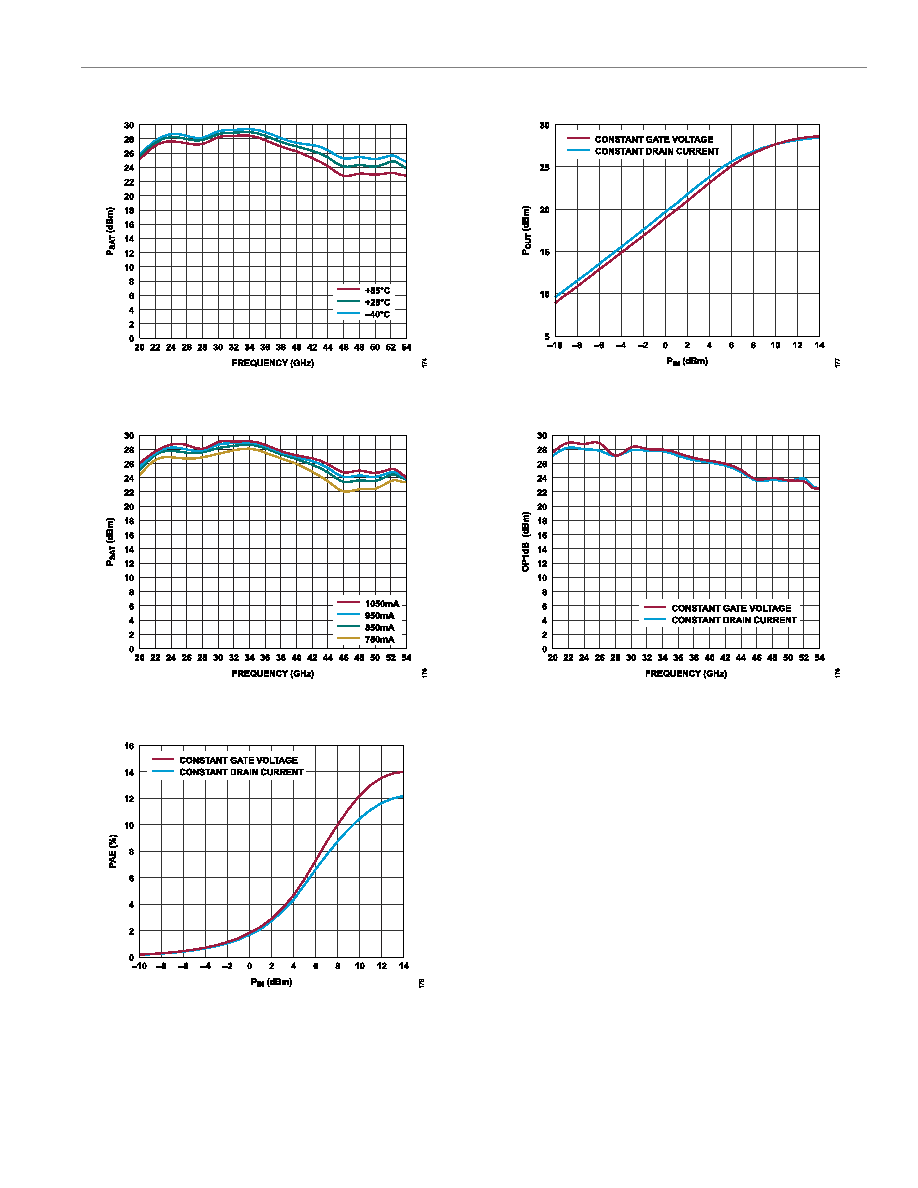

Figure 74. PSAT vs. Frequency for Various Temperatures, VDD = 5 V, Data
Measured with Constant IDD = 950 mA
Figure 75. PSAT vs. Frequency for Various IDQ Values, VDD = 5 V, Data
Measured with Constant IDD
Figure 76. PAE vs. PIN, VDD = 5 V, Frequency = 36 GHz, Constant Drain
Current (IDRAIN Setpoint = 950 mA) and Constant Gate Voltage (IDQ = 850 mA)
Figure 77. POUT vs. PIN, VDD = 5 V, Frequency = 36 GHz, Constant Drain
Current (IDRAIN Setpoint = 950 mA) and Constant Gate Voltage (IDQ = 850 mA)
Figure 78. OP1dB vs. Frequency, VDD = 5 V, Constant Drain Current (IDRAIN
Setpoint = 950 mA) and Constant Gate Voltage (IDQ = 850 mA)
