ADL8106ACEZ-R7 Fiches technique(PDF) 25 Page - Analog Devices

No de pièce ADL8106ACEZ-R7
Description  GaAs, pHEMT, Low Noise Amplifier, 18 GHz to 54 GHz
PDF  26 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricant  AD [Analog Devices]
Site Internet  http://www.analog.com
Logo AD - Analog Devices

ADL8106ACEZ-R7 Fiches technique(HTML) 25 Page - Analog Devices

Back Button ADL8106ACEZ-R7 Datasheet HTML 18Page - Analog Devices ADL8106ACEZ-R7 Datasheet HTML 19Page - Analog Devices ADL8106ACEZ-R7 Datasheet HTML 20Page - Analog Devices ADL8106ACEZ-R7 Datasheet HTML 21Page - Analog Devices ADL8106ACEZ-R7 Datasheet HTML 22Page - Analog Devices ADL8106ACEZ-R7 Datasheet HTML 23Page - Analog Devices ADL8106ACEZ-R7 Datasheet HTML 24Page - Analog Devices ADL8106ACEZ-R7 Datasheet HTML 25Page - Analog Devices ADL8106ACEZ-R7 Datasheet HTML 26Page - Analog Devices
Zoom Inzoom in Zoom Outzoom out
 25 / 26 page
background image
Data Sheet
ADL8106
APPLICATIONS INFORMATION
analog.com
Rev. 0 | 25 of 26

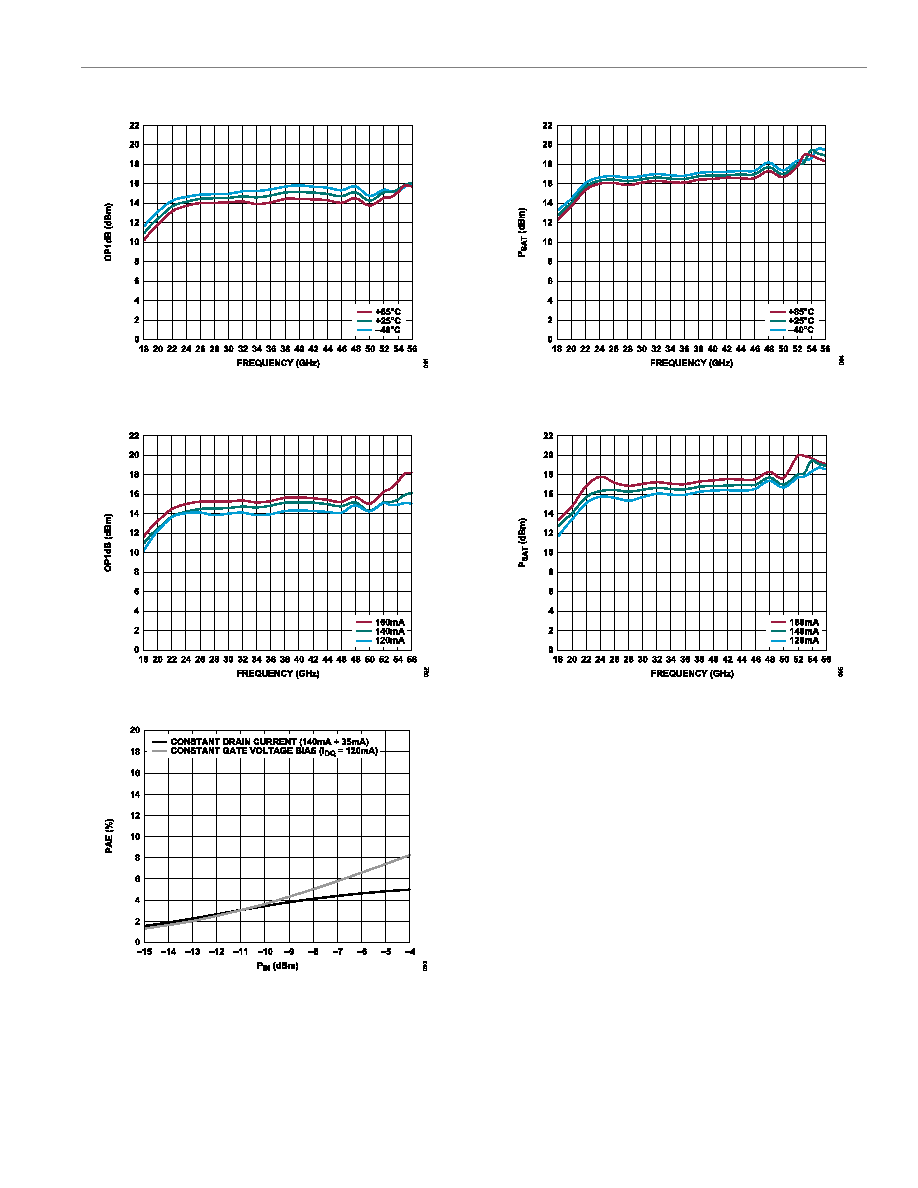

Figure 91. OP1dB vs. Frequency for Various Temperatures, Data Measured
with Constant Drain Current of 140 mA
Figure 92. OP1dB vs. Frequency for Various Constant Drain Currents
Figure 93. PAE vs. PIN, VDD = 3 V, Frequency = 36 GHz, Constant Drain
Current Bias (140 mA + 35 mA) and Constant Gate Voltage Bias (IDQ= 120
mA)
Figure 94. PSAT vs. Frequency for Various Temperatures, Data Measured with
IDD = 140 mA
Figure 95. PSAT vs. Frequency for Various Constant Drain Currents
