CC1070
SWRS043
Page 54 of 58

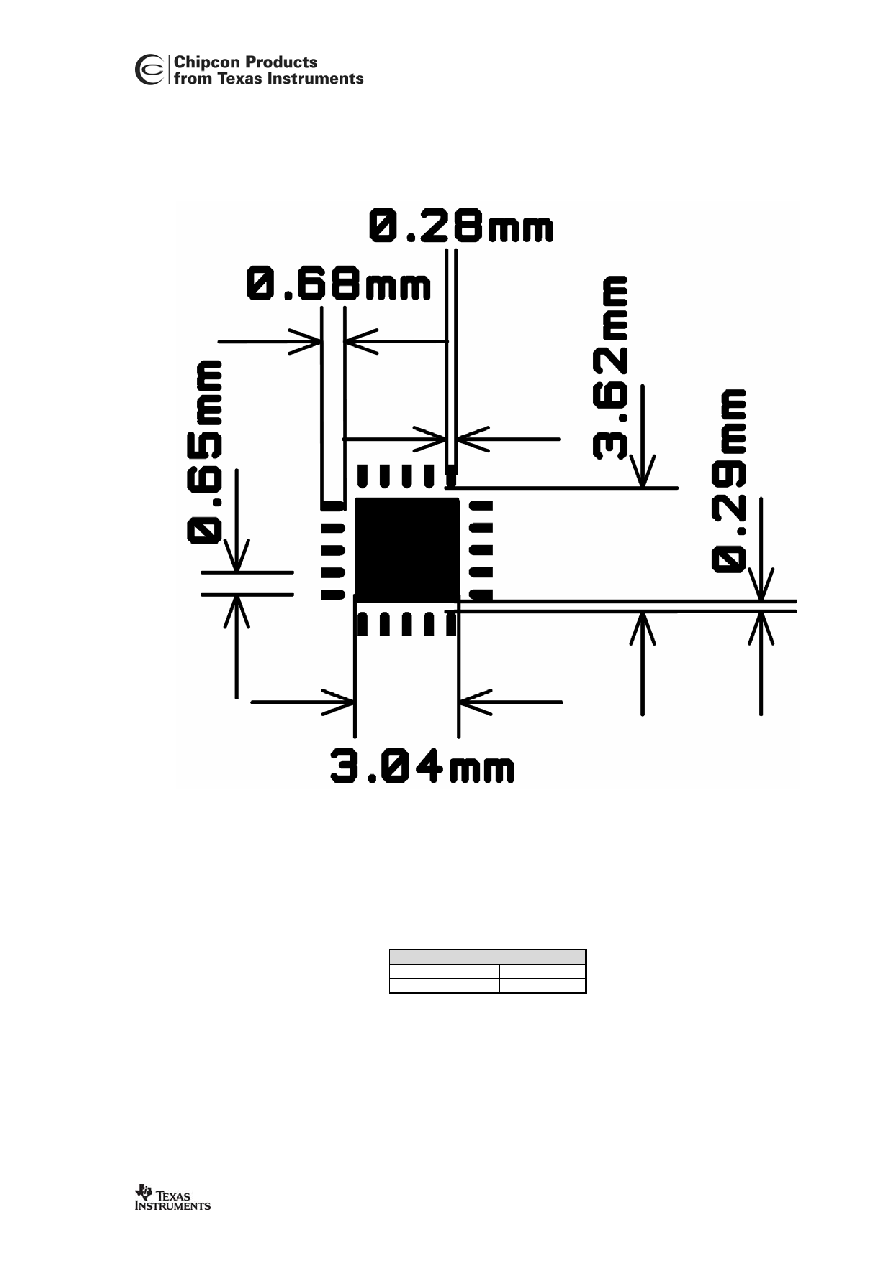

25.2 Recommended PCB footprint for package (QFN 20)
Note: The figure is an illustration only and not to scale. There are 8 14 mil (0.36 mm) diameter via holes
distributed symmetrically in the ground plane under the package. See also the CC1070EM reference
design.
25.3 Package Thermal Properties
Thermal resistance
Air velocity [m/s]
0
Rth,j-a [K/W]
30 - 35
25.4 Soldering Information
Recommended soldering profile for both standard leaded packages and Pb-free packages is according to
IPC/JEDEC J-STD-020C.
