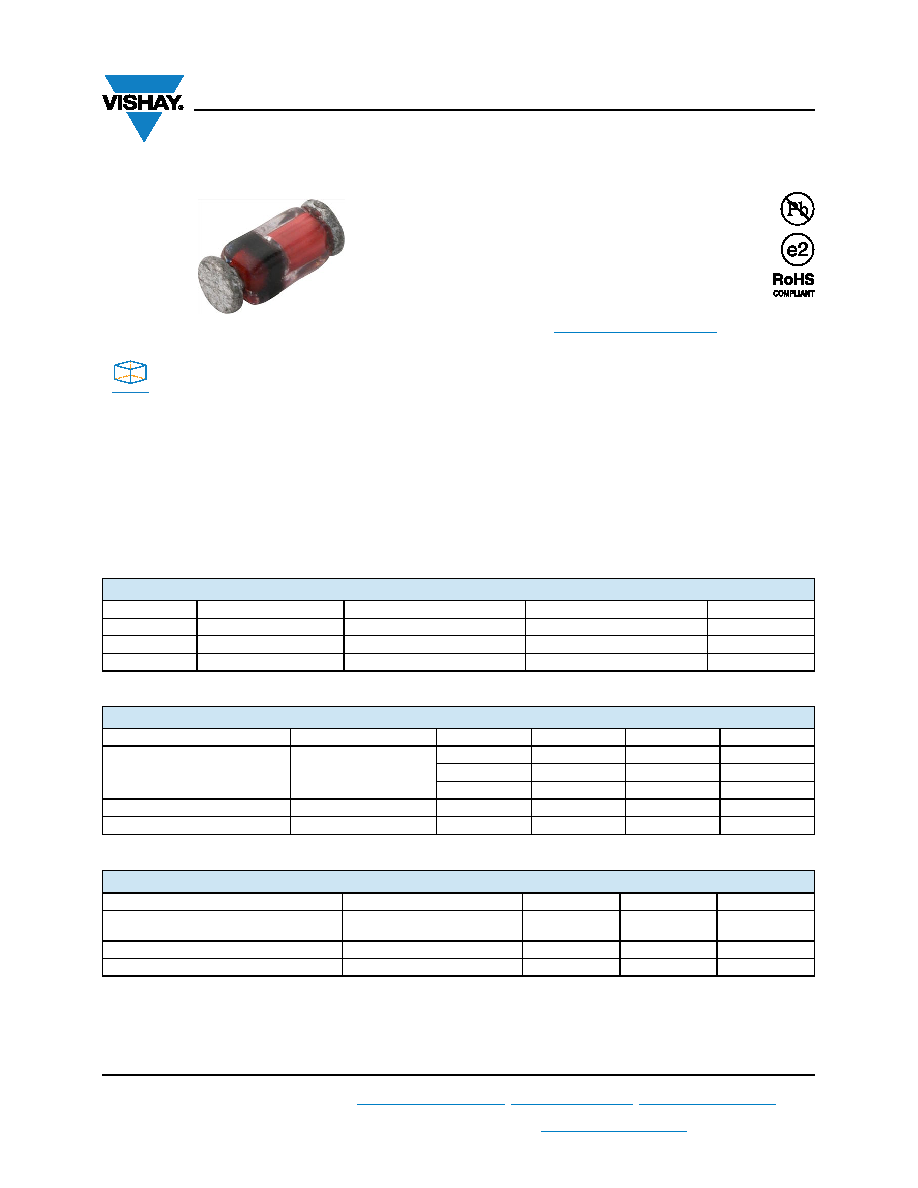

LS103A, LS103B, LS103C

www.vishay.com

Vishay Semiconductors

Rev. 1.7, 16-Nov-2021

1

Document Number: 85631

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

Small Signal Schottky Diodes

LINKS TO ADDITIONAL RESOURCES

MECHANICAL DATA

Case: QuadroMELF (SOD-80)

Weight: approx. 34 mg

Cathode band color: black

Packaging codes/options:

GS18/10K per 13" reel (8 mm tape), 10K/box

GS08/2.5K per 7" reel (8 mm tape), 12.5K/box

FEATURES

• Integrated

protection

ring

against

static

discharge

•Low capacitance

• Low leakage current

• Low forward voltage drop

• Material categorization: for definitions of compliance

APPLICATIONS

• HF-detector

• Protection circuit

• Small battery charger

• AC/DC / DC/DC converter for notebooks

333

DDD3 D

3D Models

PARTS TABLE

PART

TYPE DIFFERENTIATION

ORDERING CODE

CIRCUIT CONFIGURATION

REMARKS

LS103A

LS103A-GS18 or LS103A-GS08

Single

Tape and reel

LS103B

LS103B-GS18 or LS103B-GS08

Single

Tape and reel

LS103C

LS103C-GS18 or LS103C-GS08

Single

Tape and reel

PARAMETER

TEST CONDITION

PART

SYMBOL

VALUE

UNIT

Reverse voltage

LS103A

40

V

LS103B

30

V

LS103C

20

V

Peak forward surge current

15

A

Power dissipation

400

mW

PARAMETER

TEST CONDITION

SYMBOL

VALUE

UNIT

Thermal resistance junction to ambient air

On PC board

50 mm x 50 mm x 1.6 mm

250

K/W

Junction temperature

125

°C

Storage temperature range

-65 to +150

°C
