CSA-RPSM-216-SAFB datasheet(1/1 Pages) LINX

No de pièce	CSA-RPSM-216-SAFB

Description	CSA-RPSM-216-SAFB

PDF	1 Pages

Scroll/Zoom	100%

Fabricant	LINX [Linx Technologies]

Site Internet	https://linxtechnologies.com/wp/

Logo

1 / 1 page

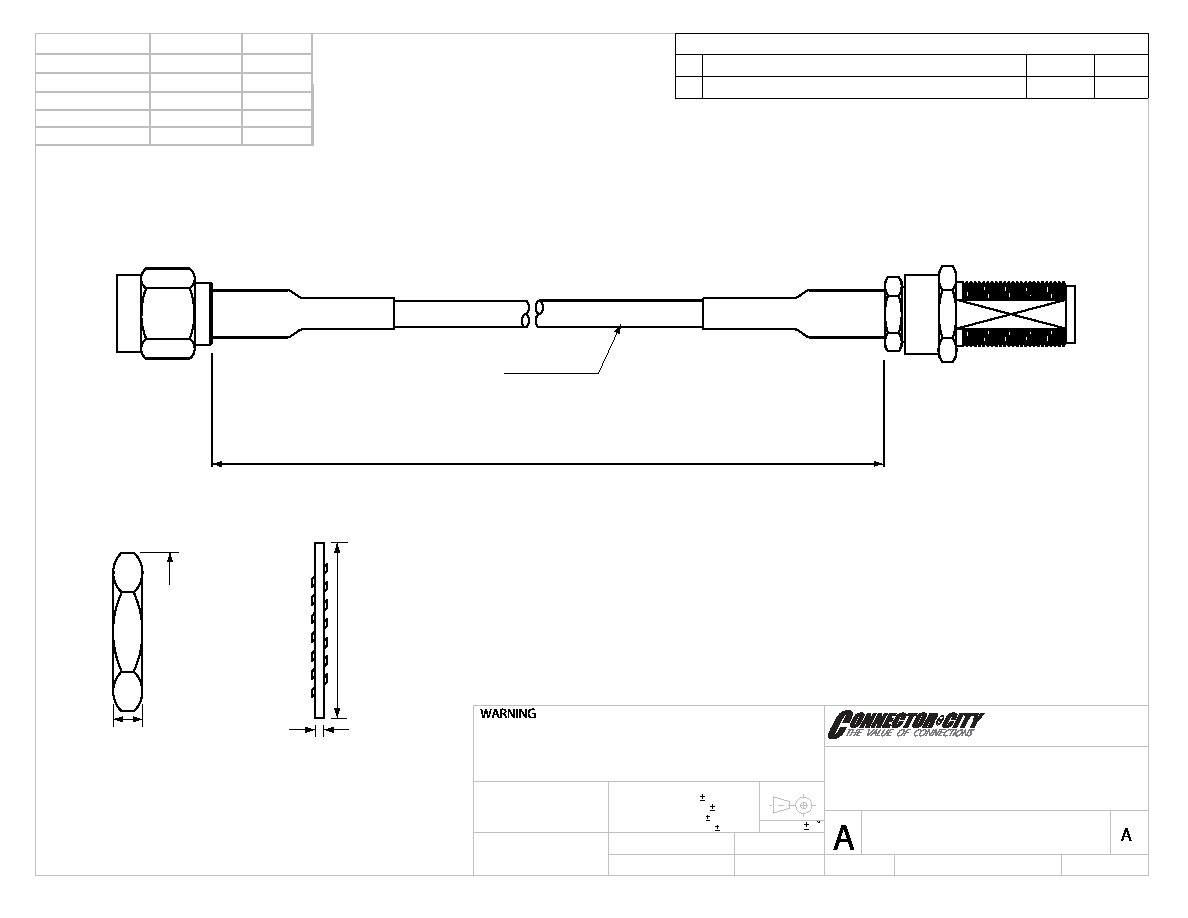

NOTES: (UNLESS OTHERWISE SPECIFIED)

1. ALL DIMENSIONS ARE IN INCHES [mm].

2. DIMENSIONS APPLY AFTER FINISHING.

3. MANUFACTURE TO BE COMPLIANT WITH EU RoHS DIRECTIVE.

4. SAFETY BREAK ALL SHARP CORNERS AND EDGES .02 MAXIMUM.

REVISIONS

REV

A

New Frame

1/18/10

CJ

DESCRIPTION

DATE

APPV

SHEET 1 OF 1

LDCFDCC_A

SCALE: 2:1

TITLE:

SIZE DWG. NO.

REV

DO NOT SCALE DRAWING

ANGLES: 1

TOLERANCES:

.020 [0.50]-.200 [5.00]= .008 [0.20]

.200 [5.00]-1.200 [30.00]= .016 [0.40]

1.20 [30.0]-4.75 [120.0]= .024 [0.60]

4.75 [120.0]-12.40 [315.0]= .040 [1.0]

DRAWN:

ENGR:

DT:

MATERIAL:

FINISH:

PROJECTION:

: THIS DRAWING CONTAINS PROPRIETARY INFORMATION

THAT IS THE SOLE PROPERTY OF CONNECTOR CITY, AND SHALL BE

TREATED AS SUCH. NO DISCLOSURE OR REPRODUCTION OF THIS

DOCUMENT IS PERMITTED, IN WHOLE OR IN PART, WITHOUT THE

EXPRESS WRITTEN PERMISSION OF CONNECTOR CITY OR ITS

DESIGNATED AGENTS.

159 ORT LANE

MERLIN, OR 97532

Description

Material

Finish

Body

Cable

Nickel

Black

Washer

Nickel

Brass

Nut

Nickel

Brass

Heat Shrink

Black

Polyoleﬁn

Brass

RG-174

CONREVSMA007 to CONSMA005,

8.5” RG-174 Cable

CSA-RPSM-216-SAFB

CJ

1/18/10

8.50”

(216.0)

RG-174/U

0.065

(1.65)

1/4-36UNS-2A

THREADS

H8

0.020

(0.50)

Ø0.402

(10.20)

NUT

WASHER
