ADP-RPSM-SMAF datasheet(1/1 Pages) LINX

No de pièce	ADP-RPSM-SMAF

Description	RP-SMA MALE TO SMA FEMALE ADAPTOR

PDF	1 Pages

Scroll/Zoom	100%

Fabricant	LINX [Linx Technologies]

Site Internet	https://linxtechnologies.com/wp/

Logo

1 / 1 page

NOTES: (UNLESS OTHERWISE SPECIFIED)

1. ALL DIMENSIONS ARE IN INCHES [mm].

2. DIMENSIONS APPLY AFTER FINISHING.

3. MANUFACTURE TO BE COMPLIANT WITH EU RoHS DIRECTIVE.

4. SAFETY BREAK ALL SHARP CORNERS AND EDGES .02 MAXIMUM.

SHEET 1 OF 1

LDCFDLT_A

SCALE: 2:1

TITLE:

SIZE DWG. NO.

REV

DO NOT SCALE DRAWING

ANGLES: 1

TOLERANCES:

.020 [0.50]-.200 [5.00]= .008 [0.20]

.200 [5.00]-1.200 [30.00]= .016 [0.40]

1.20 [30.0]-4.75 [120.0]= .024 [0.60]

4.75 [120.0]-12.40 [315.0]= .040 [1.0]

DRAWN:

ENGR:

DT:

MATERIAL:

FINISH:

PROJECTION:

: THIS DRAWING CONTAINS PROPRIETARY INFORMATION

THAT IS THE SOLE PROPERTY OF LINX TECHNOLOGIES, AND SHALL BE

TREATED AS SUCH. NO DISCLOSURE OR REPRODUCTION OF THIS

DOCUMENT IS PERMITTED, IN WHOLE OR IN PART, WITHOUT THE

EXPRESS WRITTEN PERMISSION OF LINX TECHNOLOGIES OR ITS

DESIGNATED AGENTS.

159 ORT LANE

MERLIN, OR 97532

B

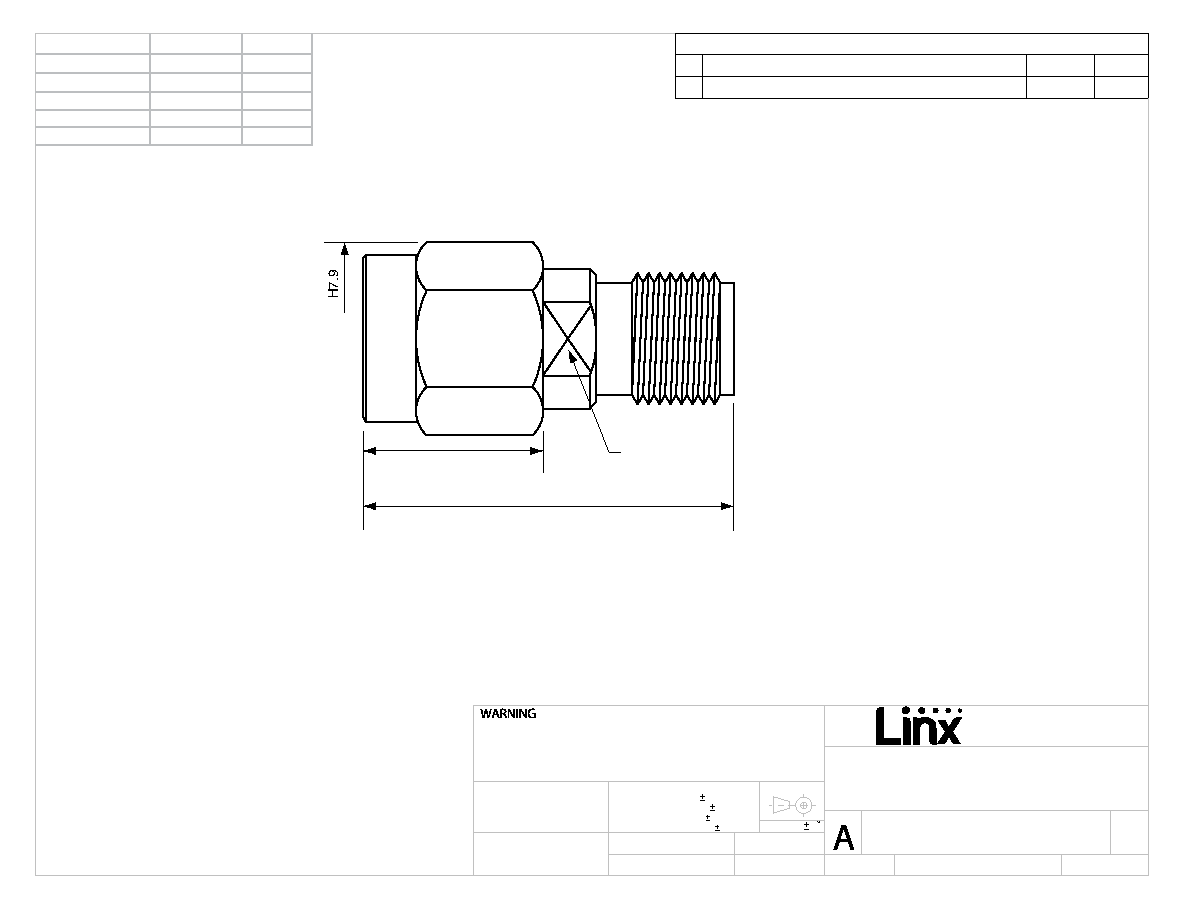

RP-SMA MALE TO SMA FEMALE ADAPTOR

ADP-RPSM-SMAF

11-JUL-12

B.MURPHY

S.HOGAN

11-JUL-12

REVISIONS

REV

DESCRIPTION

DATE

APPV

B Added new title block

11-JUL-12

SAH

0.335

(8.5)

0.689

(17.5)

FLAT

0.217x0.079

(5.5x2.0)

1/4 - 36UNS - 2A

THREADS

Description

Material

Finish

Body

Insulation

Nickel

N/A

Gold

PTFE

Brass

Washer

PH Bronze

Nickel

Gasket

Rubber

SI Rubber

1/4 - 36UNS - 2B

THREADS

SIDE VIEW

SMA FEMALE

RP-SMA MALE
