STCF01
7 Typical Operating Characteristics
9/16
7

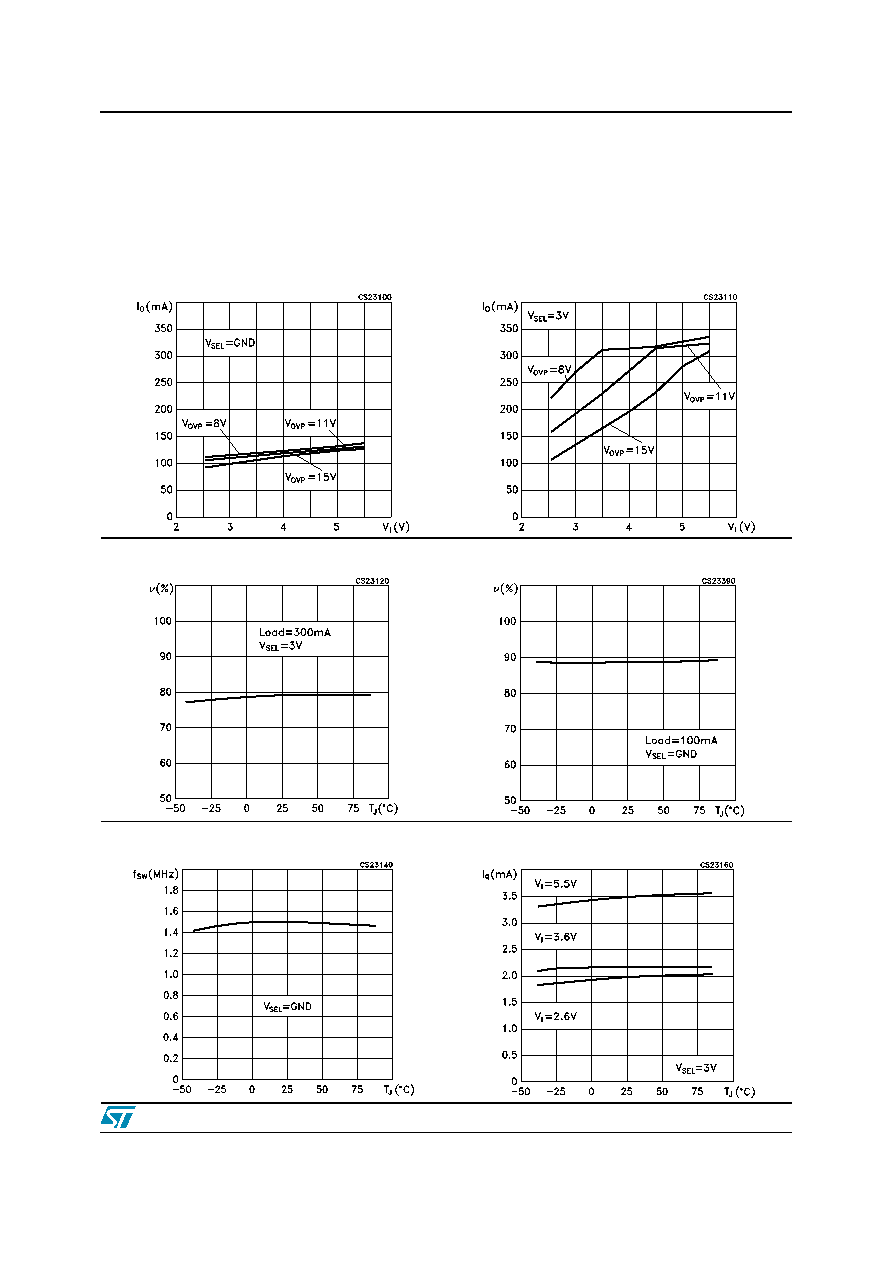

Typical Operating Characteristics
(TJ = -40°C to 85°C, VI = 3.6V, CI = 2.2µF, CO = 4.7µF, L = 10µH, RLC = 12kΩ, RHC = 4kΩ, VOVP
= 8V, Typ. values @ 25°C, unless otherwise specified).
Figure 4.
Maximum Output Current Vs Input
Voltage
Figure 5.
Maximum Output Current Vs Input
Voltage
Figure 6.
Efficiency Vs Temperature
Figure 7.
Efficiency Vs Temperature
Figure 8.
Efficiency vs Temperature
Figure 9.
Quiescent Current at Full Operation
Vs Temperature
