PLL620-38/39

PECL and LVDS Low Phase Noise XO (32.5 to 130MHz output)

47745 Fremont Blvd., Fremont, California 94538 Tel (510) 492-0990 Fax (510) 492-0991

www.phaselink.com Rev 09/15/05 Page 1

FEATURES

• 65MHz to 130MHz Crystal input.

• Output range: 32.5MHz – 130MHz (no PLL).

• Low Injection Power for crystal, 50uW.

• PECL (PLL620-38) or LVDS output (PLL620-39).

• Supports 2.5V or 3.3V-Power Supply.

• Available in 16-Pin TSSOP.

DESCRIPTION

The PLL620-38/-39 is a family of XO IC’s specifically

designed to work with high frequency fundamental or

selectable PECL or LVDS outputs. They achieve

very low current into the crystal resulting in better

overall stability. Their very low jitter makes them

ideal for the most demanding timing requirements.

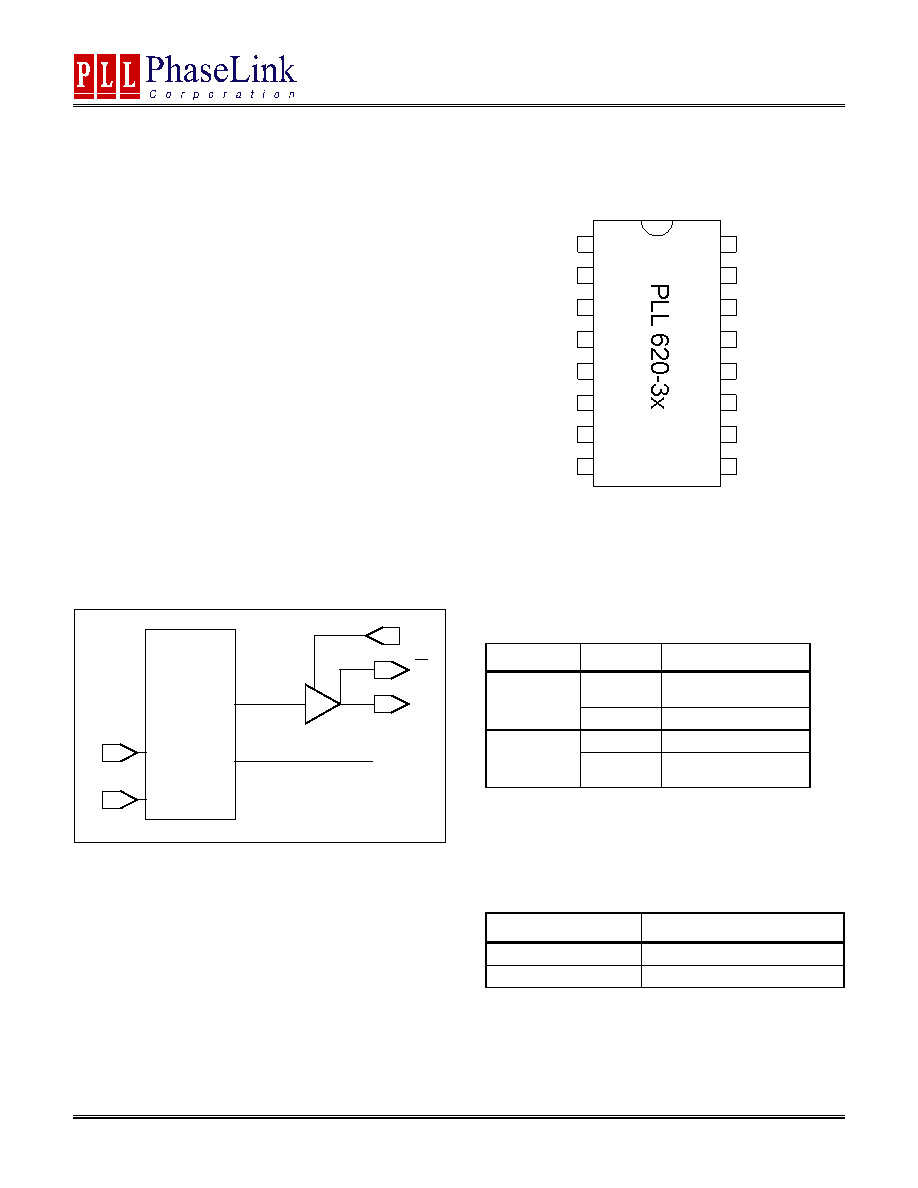

BLOCK DIAGRAM

PIN CONFIGURATION

Note: ^ designates internal pull-up resistor.

OUTPUT ENABLE LOGICAL LEVELS

Part #

OE

State

0

(Default)

Output enabled

PLL620-38

1

Tri-state

0

Tri-state

PLL620-39

1

(Default)

Output enabled

OE input: Logical states defined by PECL levels for PLL620-38

Logical states defined by CMOS levels for PLL620-39

OUTPUT FREQUENCY SELECTOR

S2

Output

0

Input/2

1(Default)*

Input

*Internally set to ‘Default’ through 60K pull-up resistor

!

XIN

XOUT

OE

Q

PLL620-38/-39

Q

Oscillator

Amplifier

S2
