AH472M Fiches technique(PDF) 18 Page - List of Unclassifed Manufacturers

No de pièce AH472M
Description  CERAMIC DISC CAPACITOR SAFETY RECOGNIZED
PDF  18 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricant  ETC2 [List of Unclassifed Manufacturers]
Site Internet
Logo ETC2 - List of Unclassifed Manufacturers

AH472M Fiches technique(HTML) 18 Page - List of Unclassifed Manufacturers

Back Button AH472M Datasheet HTML 10Page - List of Unclassifed Manufacturers AH472M Datasheet HTML 11Page - List of Unclassifed Manufacturers AH472M Datasheet HTML 12Page - List of Unclassifed Manufacturers AH472M Datasheet HTML 13Page - List of Unclassifed Manufacturers AH472M Datasheet HTML 14Page - List of Unclassifed Manufacturers AH472M Datasheet HTML 15Page - List of Unclassifed Manufacturers AH472M Datasheet HTML 16Page - List of Unclassifed Manufacturers AH472M Datasheet HTML 17Page - List of Unclassifed Manufacturers AH472M Datasheet HTML 18Page - List of Unclassifed Manufacturers
Zoom Inzoom in Zoom Outzoom out
 18 / 18 page
background image
POE-D10-00-E-13
SAFETY STANDARDS REGULATED, REINFORCED
INSULATION TYPE, AH SERIES
Ver: 13
Page: 18 / 18

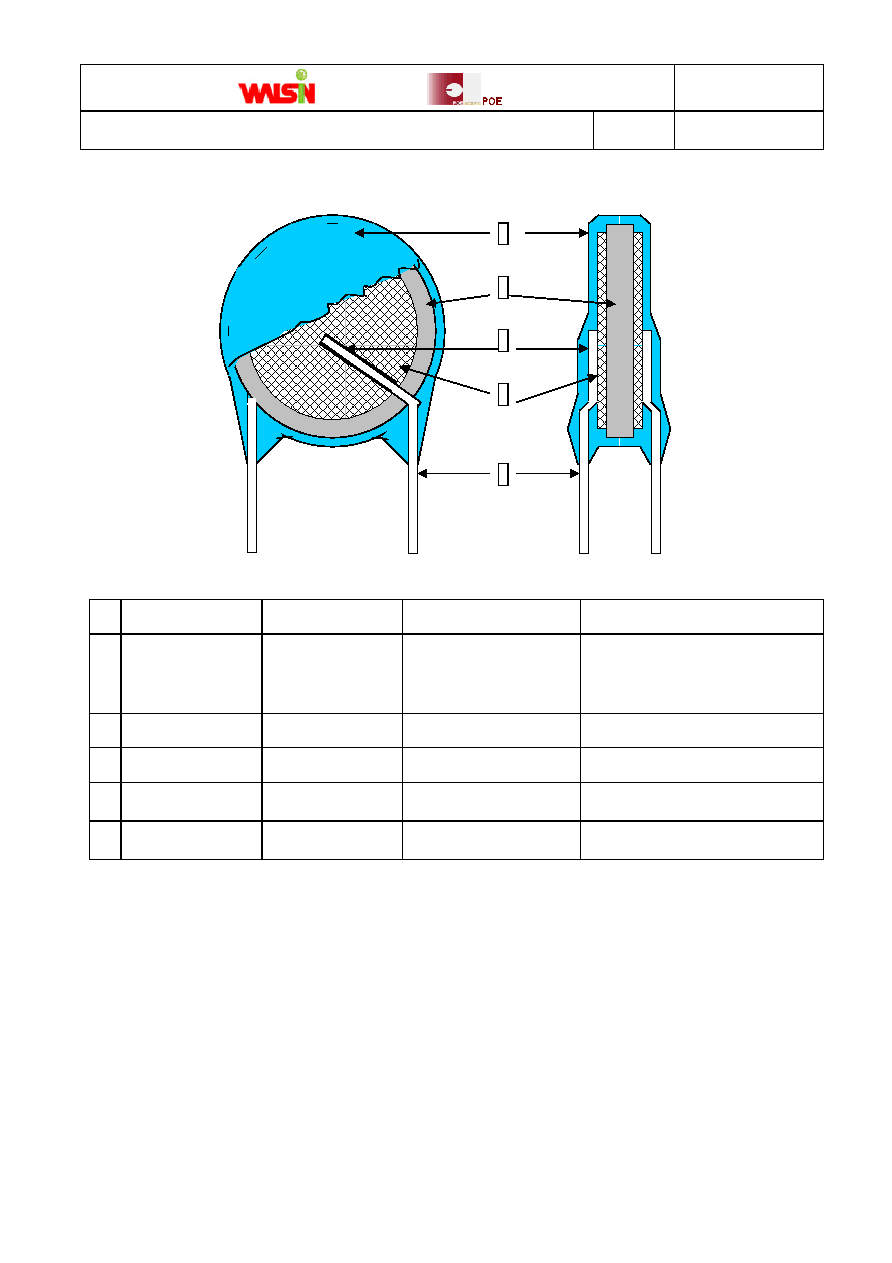

10. Drawing of internal structure and material list﹕
﹕
﹕
﹕
Remarks：
：
：
：
No.
Part name
Material
Model/Type
Component
1
Insulation Coating
Epoxy polymer
1.EF-150
2.PCE-300
Epoxy resin﹑Pigment
(Blue / UL 94 V-0 )
The minimum thickness of coating
(reinforced insulation) is 0.4mm
2
Dielectric Element
Ceramic
CH/SL/Y5P/Y5U/Y5V
BaTiO3
3
Solder
Tin-silver
Sn96.5-Ag3-Cu0.5
Sn96.5-Ag3-Cu0.5
4
Electrodes
Ag
1.SP-160PL
2.SP-260PL
Silver、Glass frit
5
Leads wire
Tinned copper clad
steel wire
0.55±0.05mm
Substrate metal: Fe & Cu
Surface plating: Sn 100%(3~7µm)
1
2
3
4
5
