MODEL: L3PK

http://www.m-system.co.jp/

L3PK SPECIFICATIONS

ES-1966 Rev.4 Page 3/3

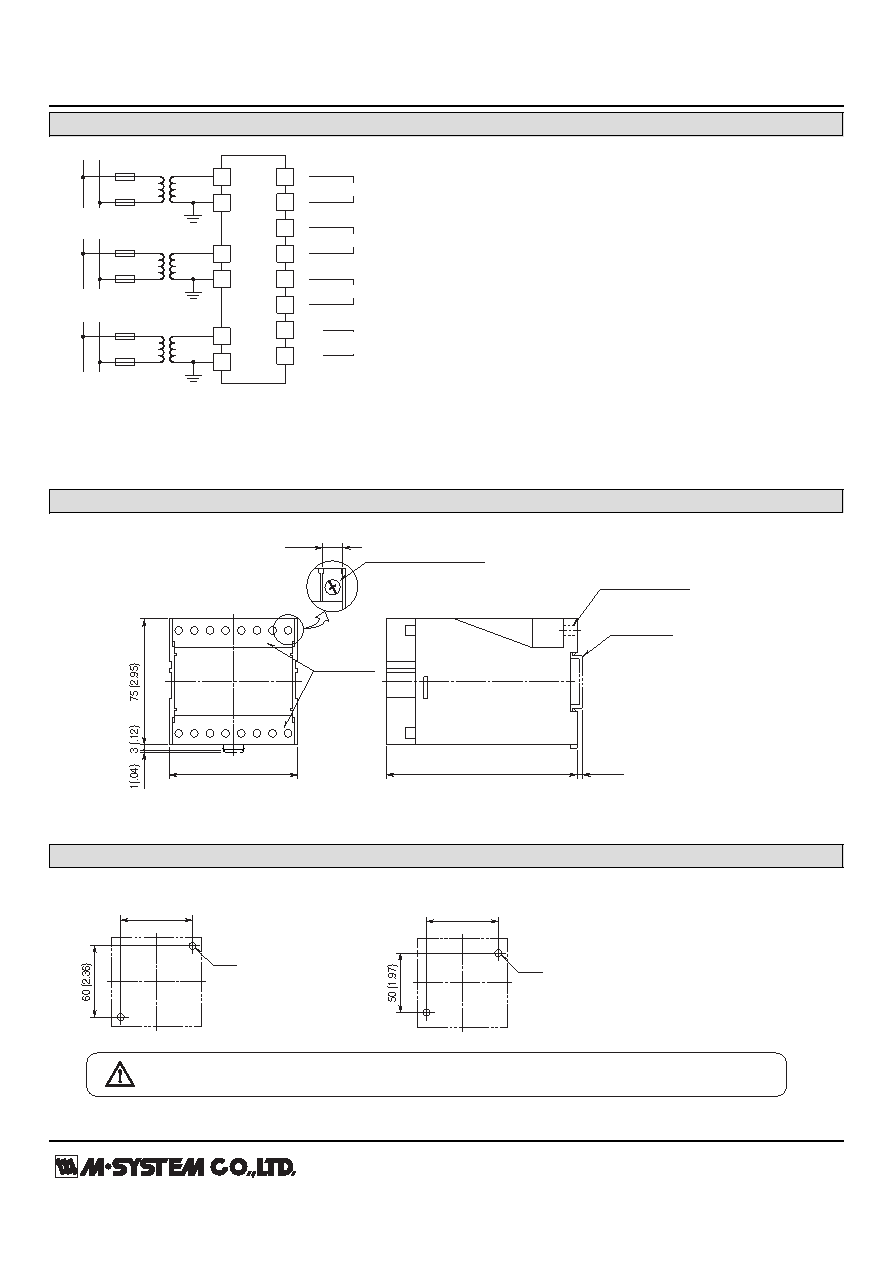

CONNECTION DIAGRAM

–

Ch.1 OUTPUT

–

Ch.2 OUTPUT

–

Ch.3 OUTPUT

U(+)

V(–)

FUSE

Ch.1

LOAD

SOURCE

FUSE

Ch.2

LOAD

SOURCE

FUSE

Ch.3

LOAD

SOURCE

AUXILIARY*

POWER

* The transducer can be powered from the input voltage

when the voltage is sufficiently stable and meets within

the range of auxiliary power supply of the unit specified

in the data sheet/instruction manual.

EXTERNAL DIMENSIONS & TERMINAL ASSIGNMENTS unit: mm (inch)

112 (4.41)

[3.3 (.13)]

DIN RAIL

35mm wide

8 (.31)

M3.5 SCREW

(Only on the used terminals)

75 (2.95)

TERMINAL

COVER

2–5.8 (.23) dia. or

2–4.8 (.18) dia.

MTG HOLE

8 (.31) deep

•When mounting, no extra space is needed between units.

9 10 11 12 13 14 15 16

1 2

7 8

MOUNTING REQUIREMENTS unit: mm (inch)

2–M5

60 (2.36)

■ M5 SCREWS

2–M4

60 (2.36)

■ M4 SCREWS

Specifications are subject to change without notice.
