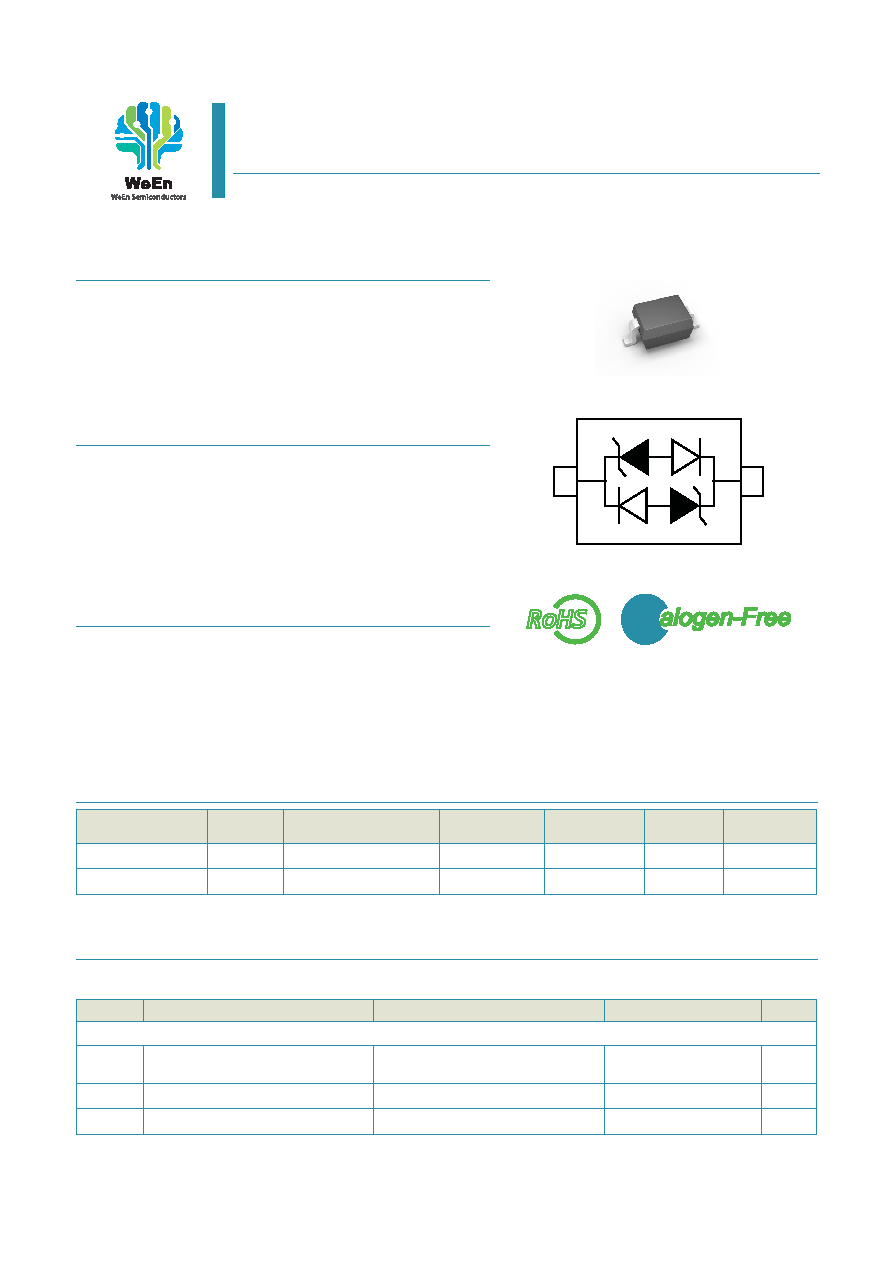

ESDALDxxBC series

ESD Protection Diodes Array

Rev.01 - 09 March 2021

Product data sheet

1. General description

The ESDALDxxBC series low capacitance transient voltage

suppressor arrays, designed to protect applications such as

portable electronics and SMART phones. This series is available in

bidirectional configurations and is rated at 350 Watts for an 8/20μs

waveshape. This series offers a low capacitance and low leakage

current in a miniature SOD323 package.

2. Features and benefits

• Peak pulse power 350W @ 8/20us waveform

• IEC 61000-4-2 (ESD) ±30kV(air), ±30kV(contact)

• Protects one directional I/O line

• Low leakage current

• Low clamping voltage

• Meet MSL level1

• Halogen free and RoHS compliant

3. Applications

• Cell Phone Handsets and Accessories

• Microprocessor based equipment

• Personal Digital Assistants (PDA’s)

• Notebooks, Desktops, and Servers

• Portable Instrumentation

• Peripherals

• USB Interface

5. Absolute maximum ratings

In accordance with the Absolute Maximum Rating System (IEC 60134).

Tj = 25 °C unless otherwise specified.

Symbol Parameter

Conditions

Values

Unit

Absolute maximum rating

VESD

ESD per IEC 61000-4-2 (air)

ESD per IEC 61000-4-2 (contact)

±30

kV

Tstg

storage temperature range

-55 to 150

°C

Tj

operating temperature range

-55 to 150

°C

1

2

RoHS

halogen-Free

4. Ordering information

Type number

Package

name

Orderable part number Packing

method

Small packing

quantity

Package

version

Package

issue date

ESDALDxxXX

SOD323

ESDALDxxXXX

Tape and reel

3000

SOD323

13-Oct-2020

ESDALD03BC

SOD323

ESDALD03BCX

Tape and reel

3000

SOD323

13-Oct-2020
