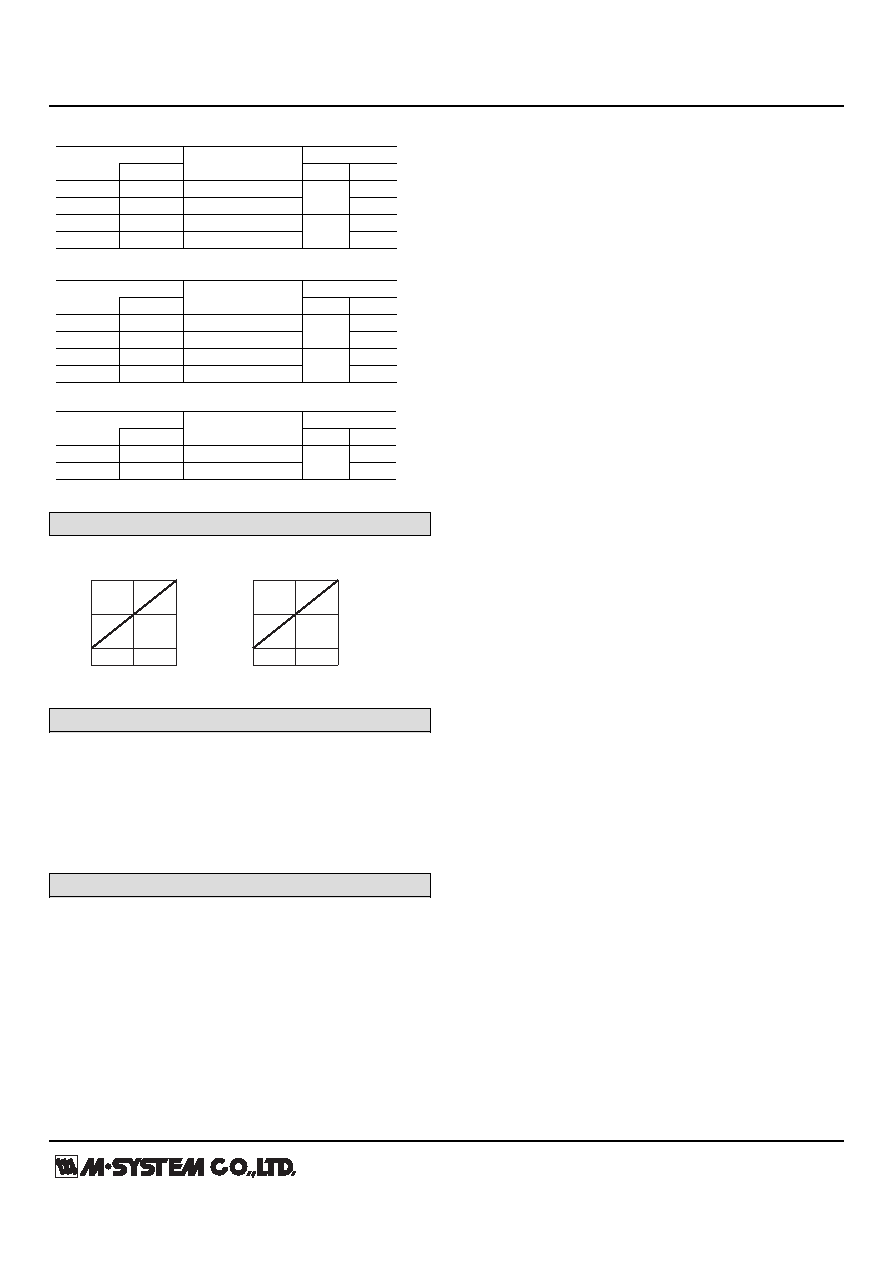

2 / 4 page

MODEL: 17WT

http://www.m-system.co.jp/

17WT SPECIFICATIONS

ES-2966 Rev.0 Page 2/4

I INPUT RANGE

•

3-phase / 3-wire

•

Single-phase / 3-wire

•

Single-phase / 2-wire

INPUT

BURDEN (VA)

STD.RANGE

AVAILABLE

RANGE

AVAILABLE

RANGE

AVAILABLE

RANGE

VOLT.

CURR.

110V/1A

110V/5A

220V/1A

220V/5A

110V/1A

110V/5A

220V/1A

220V/5A

200V/1A

200V/5A

±200 W

±1000 W

±400 W

±2000 W

±100 W

±500 W

±200 W

±1000 W

±200 W

±1000 W

0.2

/phase

0.4

/phase

0.2

/phase

0.2

0.4

0.1

0.5

0.1

0.5

0.1/ph

0.5/ph

0.1/ph

0.5/ph

0.1/ph

0.5/ph

±100 –

±240 W

±500 – ±1200 W

±200 –

±480 W

±1000 – ±2400 W

±50 – ±120 W

±250 – ±600 W

±100 – ±240 W

±500 – ±1200 W

±100 – ±240 W

±500 – ±1200 W

OUTPUT SPECIFICATIONS

500

1000W

OUT

+1000W

-1000W

OUT

■ OPERATION DIAGRAM (example)

INSTALLATION

Auxiliary power supply

Current consumption: Approx. 40 mA

Operating temperature: -5 to +55°C (23 to 131°F)

Operating humidity: 40 to 85 % RH (non-condensing)

Mounting: Standard Rack 17BXE

Weight: 200 g (0.44 lb)

PERFORMANCE in percentage of span

Accuracy: ±0.5 % (at 23°C ±10°C or 73.4°F ±18°F,

45 – 65 Hz)

Response time: ≤ 2 sec. (0 – 100 % ±1 %)

Ripple: 1 %p-p max.

Line voltage effect: ±0.1 % over voltage range

Insulation resistance: ≥ 100 MΩ with 500 V DC

Dielectric strength: 500 V AC @ 1 minute (output to

auxiliary power)

2000 V AC @ 1 minute (voltage input to current input to

output or auxiliary power)

1500 V AC @1 minute (voltage input or current input or

output or auxiliary power to ground)
