MODEL: M2XF2

M2XF2 SPECIFICATIONS

ES-5085 Rev.12 Page 4/5

http://www.m-system.co.jp/

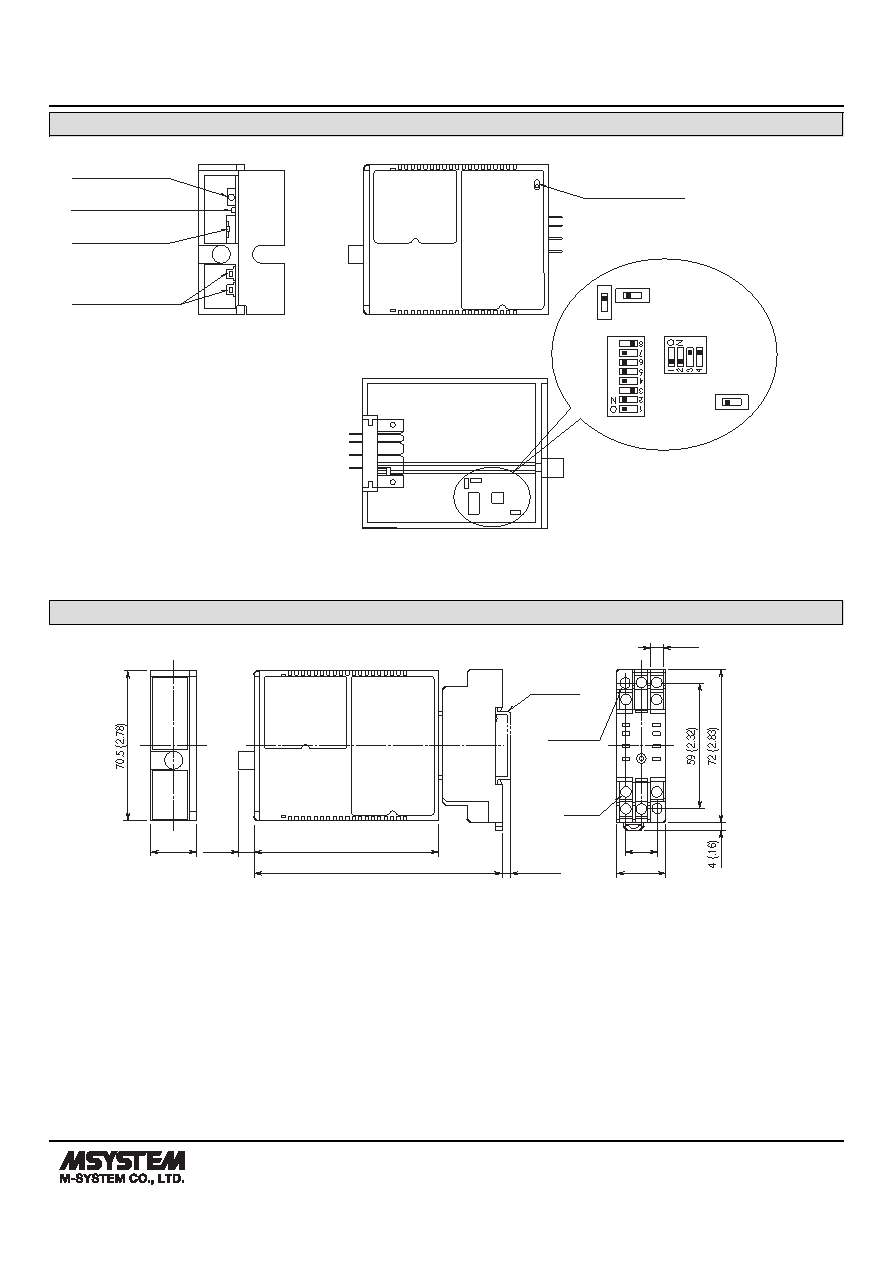

EXTERNAL VIEW

UP/DOWN Switches

The front cover cannot be turned open by 180 deg.

when there is no extra space between units.

Configurator Jack

s FRONT VIEW (with cover open)

s RIGHT SIDE VIEW

s LEFT SIDE VIEW

(with cover removed)

Status Indicator LED

Zero/Span Selector

Top: SPAN

Middle: OFF

Bottom: ZERO

Input Range Selector

Position L

Position H

: code S1

: code S2, Z1

Output Range Selectors

[e.g.]

Output code V1

SW2

ATT

SW3

SW6

SW4

SW7

Refer to the instruction manual for detailed procedures.

EXTERNAL DIMENSIONS unit: mm (inch)

21.5 (.85)

86.7 (3.41)

7.3 (.29)

15 (.59)

6 (.23)

DIN RAIL

35mm wide

[4 (.16)]

8–M3

SCREW

23 (.91)

2–4.2x5

(.17x.20)

MTG HOLE

6 (.24) deep

116.7 (4.59)

• When mounting, no extra space is needed between units.

14 13
