MODEL: M2XV2

M2XV2 SPECIFICATIONS

ES-5081 Rev.9 Page 3/4

http://www.m-system.co.jp/

CALCULATION EXAMPLES OF OVERALL ACCURACY

[Example] Input Type -10 – +10 V, Input Range 1 – 5 V,

Output Type 0 – 20 mA, Output Range 4 – 20 mA

Max. Input Range (20 V) ÷ Span (4 V) × 0.01 % = 0.05 %

Max. Output Range (20 mA) ÷ Span (16 mA) × 0.04 %

= 0.05 %

Overall accuracy = 0.05 + 0.05 = ±0.10 %

STANDARDS & APPROVALS

EU conformity:

EMC Directive

EMI EN 61000-6-4

EMS EN 61000-6-2

Low Voltage Directive

EN 61010-1

Installation Category II

Pollution Degree 2

Input or output to power: Reinforced insulation (300 V)

Input to output: Basic insulation (300 V)

RoHS Directive

EN 50581

Approval:

UL/C-UL nonincendive Class I, Division 2,

Groups A, B, C, and D

(ANSI/ISA-12.12.01, CAN/CSA-C22.2 No.213)

UL/C-UL general safety requirements

(UL 61010-1, CAN/CSA-C22.2 No.61010-1)

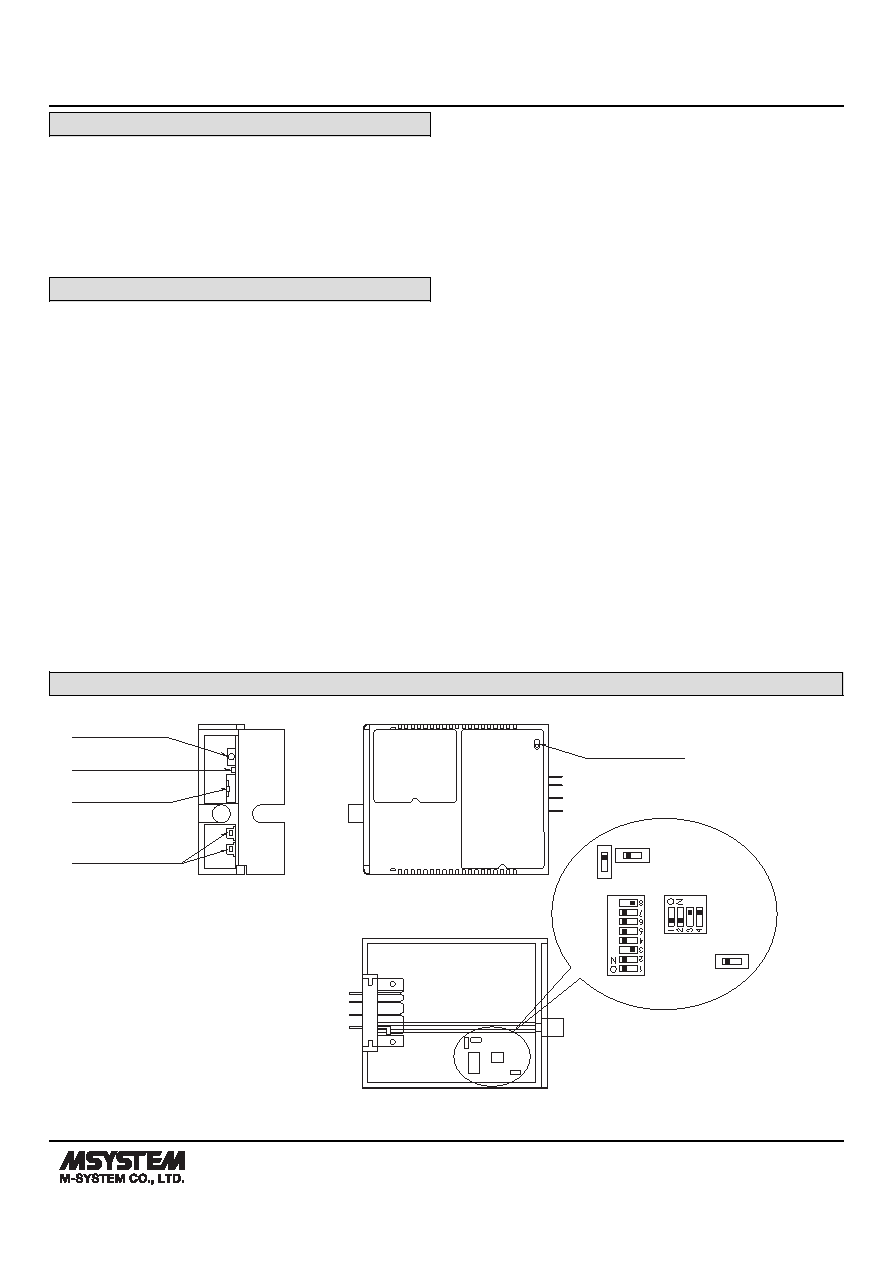

EXTERNAL VIEW

UP/DOWN Switches

The front cover cannot be turned open by 180 deg.

when there is no extra space between units.

Configurator Jack

s FRONT VIEW (with cover open)

s RIGHT SIDE VIEW

s LEFT SIDE VIEW

(with cover removed)

Status Indicator LED

Zero/Span Selector

Top: SPAN

Middle: OFF

Bottom: ZERO

Input Range Selector

Position L

Position H

: code S1

: code S2, Z1

Output Range Selectors

[e.g.]

Output code V1

SW2

ATT

SW3

SW6

SW4

SW7

Refer to the instruction manual for detailed procedures.
