Data Sheet
ADRF5740
Rev. 0 | Page 13 of 13

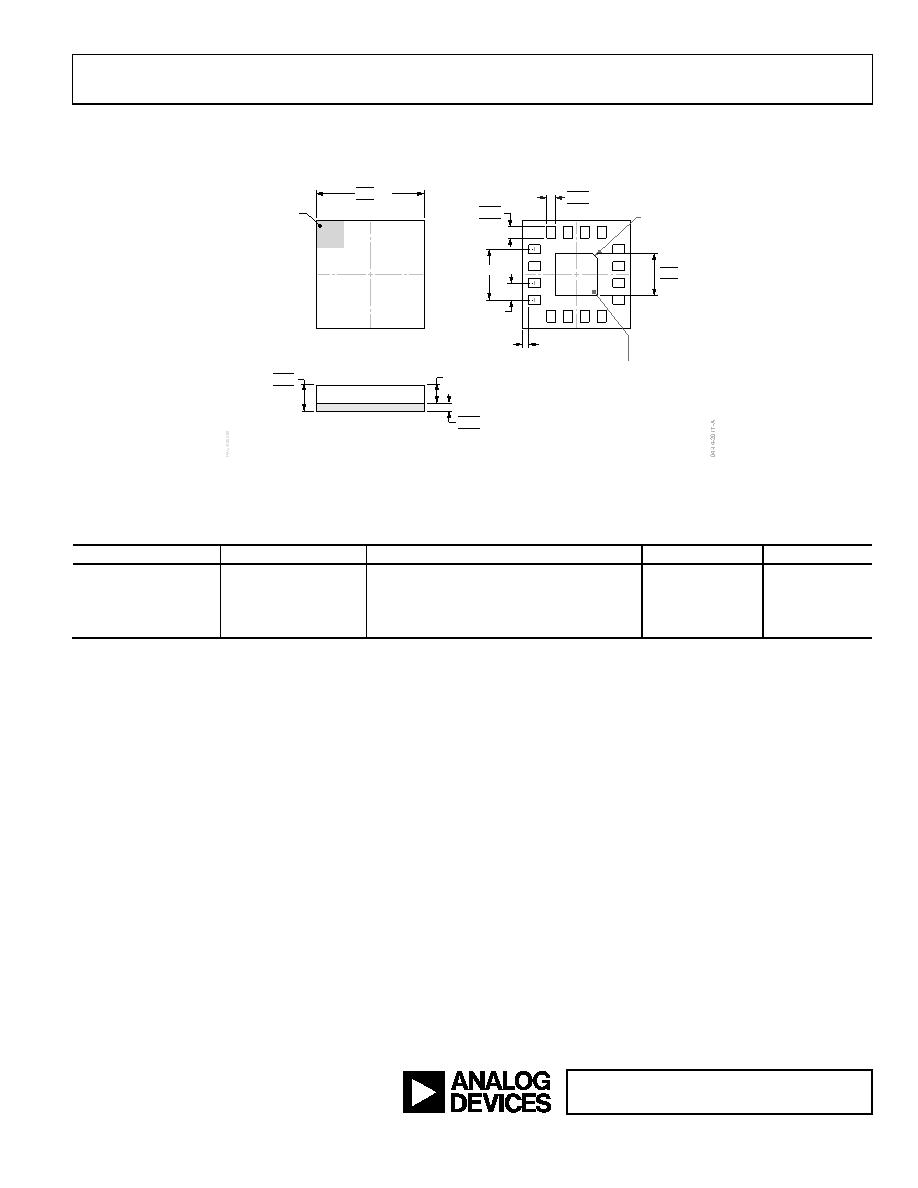

PACKAGING AND ORDERING INFORMATION
OUTLINE DIMENSIONS
2.60
2.50 SQ
2.40
TOP VIEW
SIDE VIEW
BOTTOM VIEW
1
4
5
8
9
12
13
16
1.10
1.00 SQ
0.90
0.40
BSC
0.125
REF
1.20 REF
0.250
0.200
0.150
0.325
0.275
0.225
0.850
0.750
0.650
0.260
0.220
0.180
FOR PROPER CONNECTION OF
THE EXPOSED PADS, REFER TO
THE PIN CONFIGURATION AND
FUNCTION DESCRIPTIONS
SECTION OF THIS DATA SHEET.
EXPOSED
PAD
0.530 REF
CHAMFERED
PIN 1 (0.1 × 45°)
PIN 1
CORNER AREA
Figure 27. 16-Terminal Land Grid Array [LGA]
2.5 mm × 2.5 mm Body and 0.75 mm Package Height
(CC-16-6)
Dimensions shown in millimeters
ORDERING GUIDE
Model1
Temperature Range
Package Description
Package Option
Marking Code
ADRF5740BCCZN
−40°C to +105°C
16-Terminal Land Grid Array [LGA]
CC-16-6
FF
ADRF5740BCCZN-R7
−40°C to +105°C
16-Terminal Land Grid Array [LGA]
CC-16-6
FF
ADRF5740-EVALZ-185
Evaluation Board with 1.85 mm Connectors
ADRF5740-EVALZ-292
Evaluation Board with 2.92 mm Connectors
1
Z = RoHS Compliant Part
©2020 Analog Devices, Inc. All rights reserved. Trademarks and
registered trademarks are the property of their respective owners.
D20424-6/20(0)
www.analog.com/ADRF5740
