MODEL: 10JM

http://www.m-system.co.jp/

10JM SPECIFICATIONS

ES-0865 Rev.11 Page 2/3

full-scale

Adjustments: Programming Unit (model: PU-2x);

linearization data (Unused resistance of the potentiometer's

total resistance can be programmed with the linearization

table.), zero and span, simulating output, etc.

(Refer to the users manual of JXCON for the adjustments

configurable with JXCON.)

INPUT SPECIFICATIONS

Minimum span: 25 % of total resistance (set with the

Programming Unit [model: PU-2x] or PC configurator

software [model: JXCON])

Excitation: 0.25 V DC

INSTALLATION

Current consumption: Approx. 60 mA with voltage output 1

Approx. 90 mA with current output 1

Operating temperature: -5 to +55°C (23 to 131°F)

Operating humidity: 30 to 90 %RH (non-condensing)

Mounting: Standard Rack 10BXx

Weight: 220 g (0.49 lb)

PERFORMANCE in percentage of span

Accuracy: ±0.1 % with segment gain ≤ 1 [±0.1 % × gain]

with segment gain > 1

Temp. coefficient: ±0.015 %/°C (±0.008 %/°F)

Response time: ≤ 0.5 sec. (0 – 90 %)

Line voltage effect: ±0.1 % over voltage range

Insulation resistance: ≥ 100 MΩ with 500 V DC

Dielectric strength: 500 V AC @ 1 minute

(input to output 1 to output 2 to power)

1500 V AC @ 1 minute (input or output or power to ground)

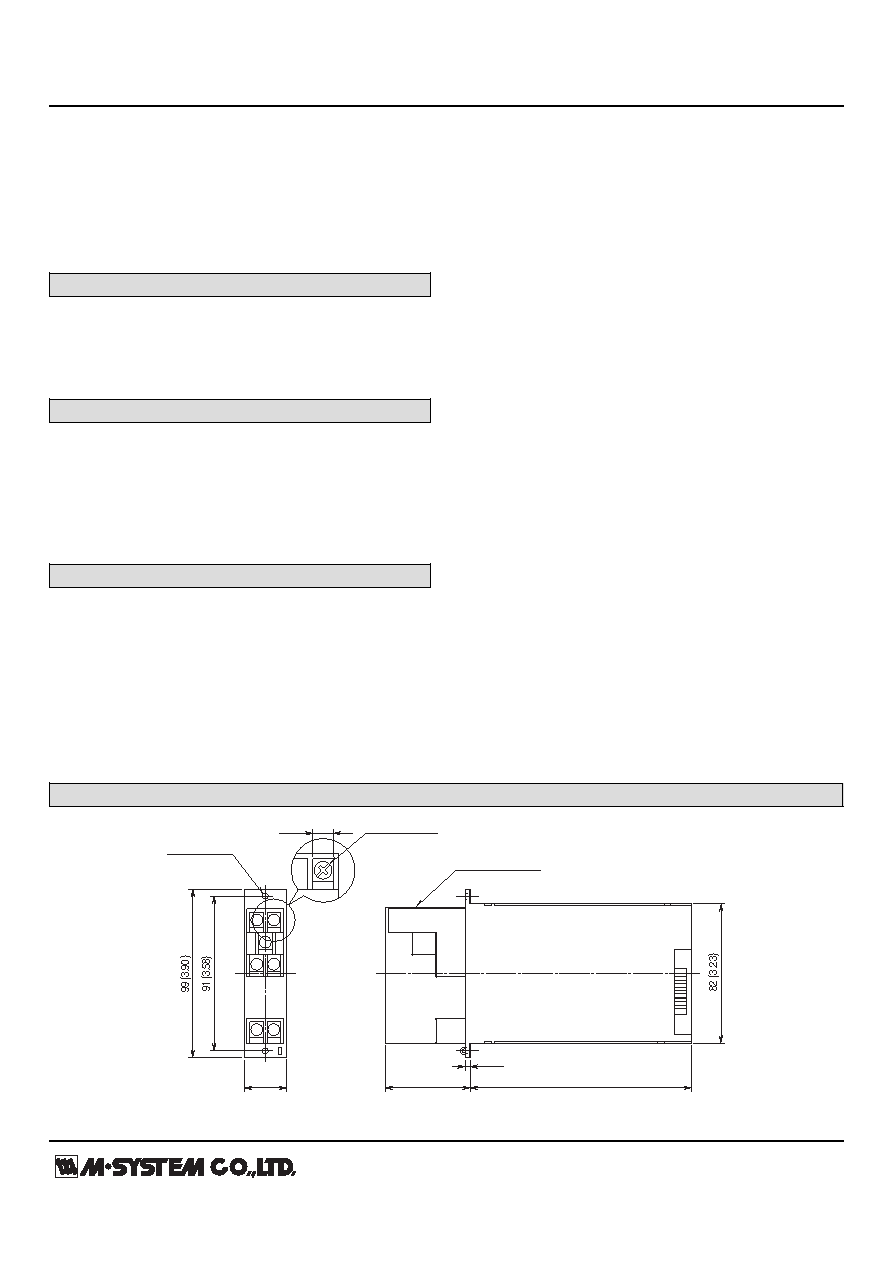

EXTERNAL DIMENSIONS & TERMINAL ASSIGNMENTS unit: mm (inch)

130 (5.12)

3 (.12)

51 (2.01)

2–4.3 (.17) dia.

MTG HOLE

TERMINAL COVER

7–M3.5 SCREW

8 (.31)

25 (.98)
