MODEL: CLSE

CLSE SPECIFICATIONS

ES-9234 Rev.7 Page 2/2

https://www.m-system.co.jp/

EN 61010-2-032

Measurement Category III (input)

Pollution Degree 2

RoHS Directive

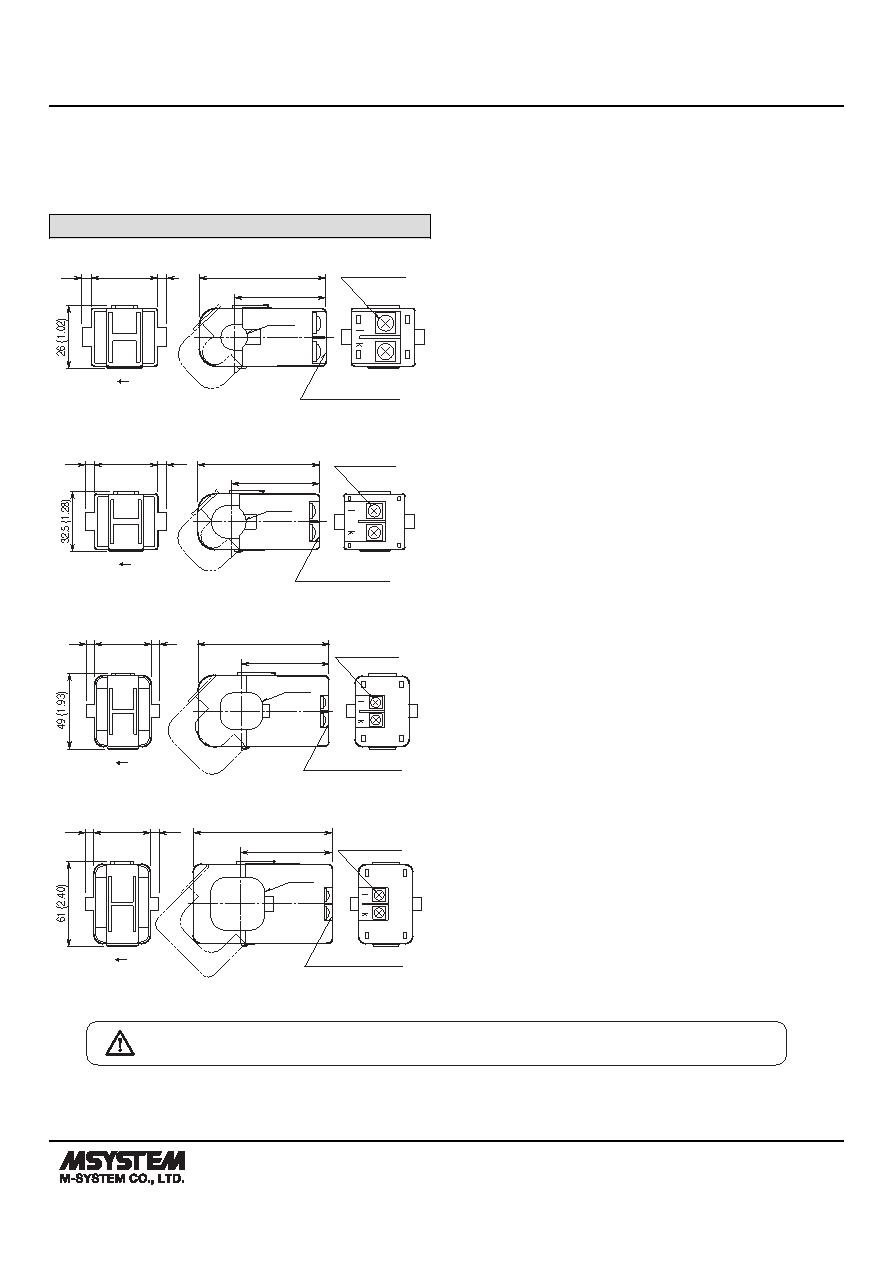

EXTERNAL DIMENSIONS unit: mm (inch)

■ Sensor model No.: CLSE-R5, CLSE-05

2–M3 SCREW

TERMINAL COVER

(detachable)

26 (1.02)

(.16)

50 (1.97)

37 (1.46)

10 dia.

(.39)

■ Sensor model No.: CLSE-10

(.16)

2–M3 SCREW

TERMINAL COVER

(detachable)

31 (1.22)

55 (2.17)

40.5 (1.59)

16 dia.

(.63)

■ Sensor model No.: CLSE-20

(.16)

2–M3 SCREW

TERMINAL COVER

(detachable)

34 (1.34)

74.5 (2.93)

49.5 (1.95)

24 dia.

(.94)

■ Sensor model No.: CLSE-40, CLSE-60

(.16)

2–M3 SCREW

TERMINAL COVER

(detachable)

40.5 (1.59)

91 (3.58)

61 (2.40)

36 dia.

(1.42)

Specifications are subject to change without notice.
