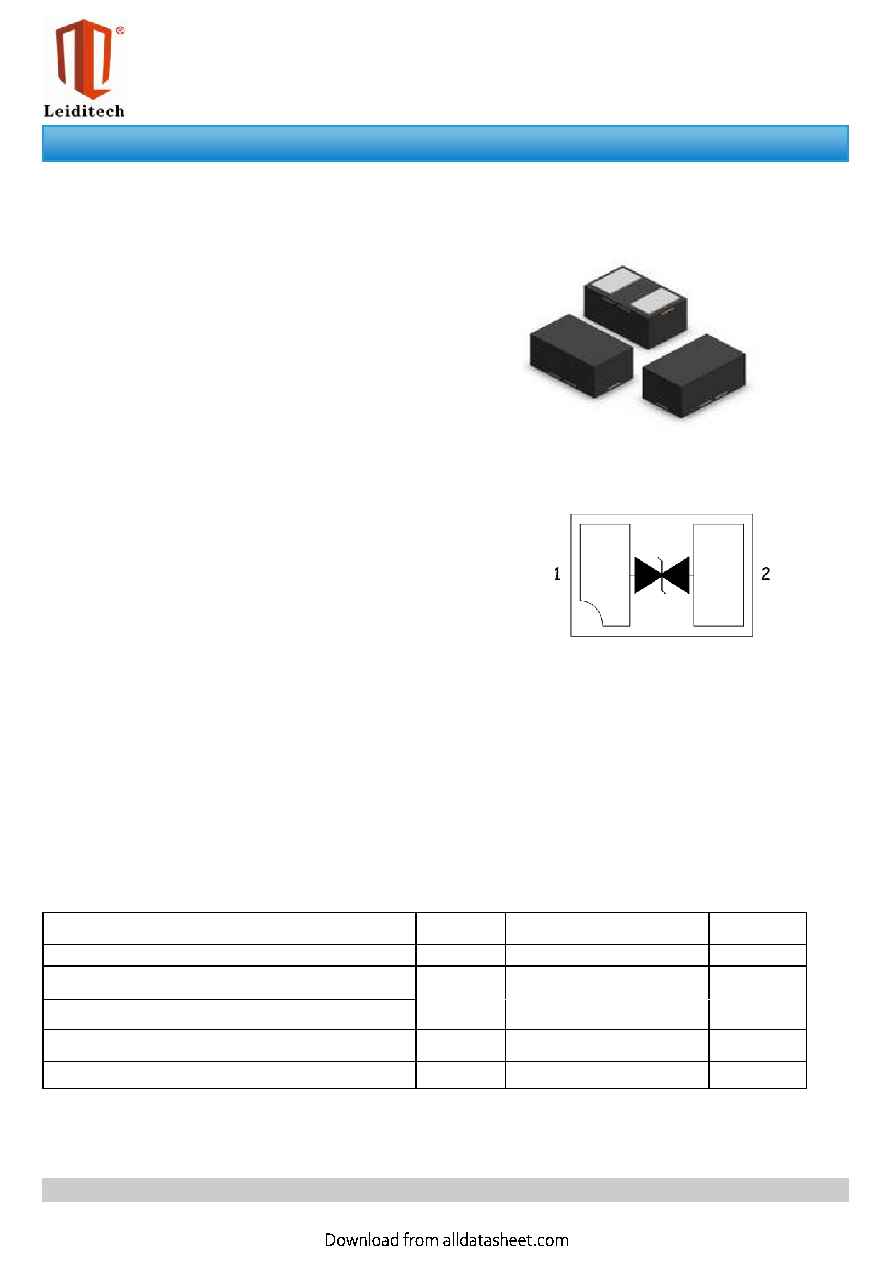

BIDIRECTIONAL TVS DIODE

Features

●

Applications

●

Dimensions DFN1006

Pin Configuration

Mechanical Characteristics

●

Absolute Maximum Ratings(Tamb=25°C unless otherwise specified)

Parameter

Symbol

Value

Unit

Peak Pulse Power (8/20µs)

Ppp

80

W

ESD per IEC 61000−4−2 (Air)

VESD

± 30

Kv

ESD per IEC 61000−4−2 (Contact)

± 30

Operating Temperature Range

TJ

-55 to +150

℃

Storage Temperature Range

TSTJ

-55 to +150

℃

Protects one data or power line

Ultra low leakage: nA level

Operating voltage: 12V

Low clamping voltage

Complies with following standards:

– IEC 61000-4-2 (ESD) immunity test

Air discharge: ±30kV

Contact discharge: ±30kV

– IEC61000-4-5 (Lightning) 8A (8/20μs)

RoHS Compliant

Cellular Handsets and Accessories

Personal Digital Assistants

Notebooks and Handhelds

Portable Instrumentation

Digital Cameras

Peripherals

Audio Players

●

Package: DFN1006

Case Material: “Green” Molding Compound.

Moisture Sensitivity: Level 3 per J-STD-020

Terminal Connections: See Diagram Below

Marking Information: See Below

Rev :

www.leiditech.com

01.06.2018

1/4

SDA0711CDN
