Features

•

USB PD port (sink)

•

STUSB4500 USB Power Delivery controller, certified for:

–

USB type-C™ (rev1.2)

–

USB PD (rev2.0)

–

TID: 1000133

•

Compliant with USB PD (rev3.0)

•

5 V on-board DC-DC

•

•

Support to up to 3 power data objects (PDO)

•

•

Customizable start-up profiles

•

Multiple output paths

•

Compatible with NUCLEO-F072RB development board for configuration and

debug interface

•

CE certified

•

RoHS and China RoHS compliant

Description

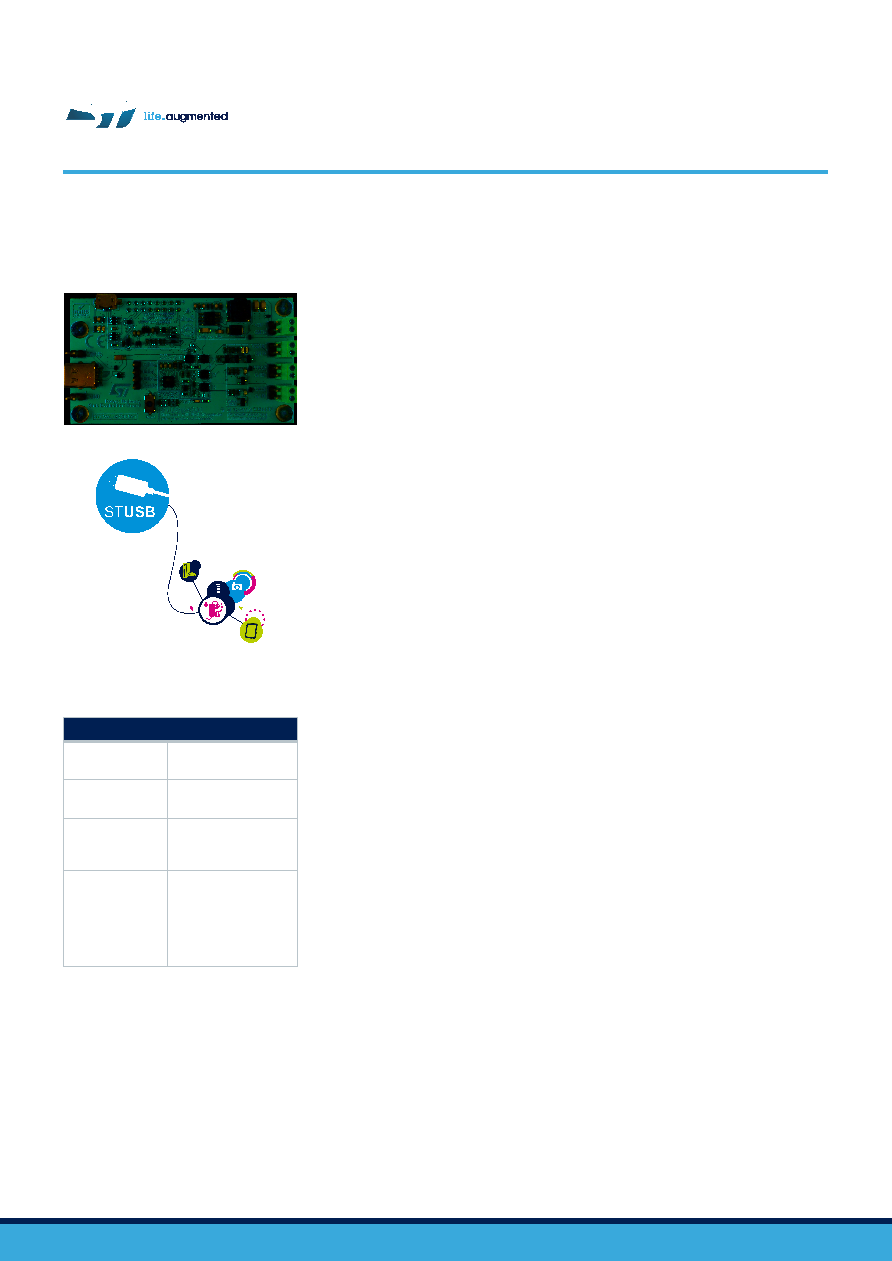

The STEVAL-ISC005V1 evaluation board is a ready-to-use USB PD sink based on

STUSB4500. It handles the USB PD negotiation with a source to enable one or more

charging paths.

to output a 5 V regulated supply which optionally allows powering an MCU evaluation

board or any other system.

Several LEDs report power availability on each of the 4 available outputs.

The USB PD sink port is pre-configured with three different PDOs to address a broad

range of applications (5 V, 15 V and 20 V).

PDOs can be easily customized thanks to a graphical user interface (GUI).

Product summary

STUSB4500

evaluation board

STEVAL-ISC005V1

Stand-alone USB

PD controller

STUSB4500

2 A step-down

switching

regulator

L7985

STM32

Nucleo-64

development

board with

STM32F072RB

MCU

NUCLEO-F072RB

Evaluation board for the STUSB4500 USB Power Delivery controller

STEVAL-ISC005V1

Data brief

DB3588 - Rev 1 - April 2018
