isc website：www.iscsemi.com

isc & iscsemi is registered trademark

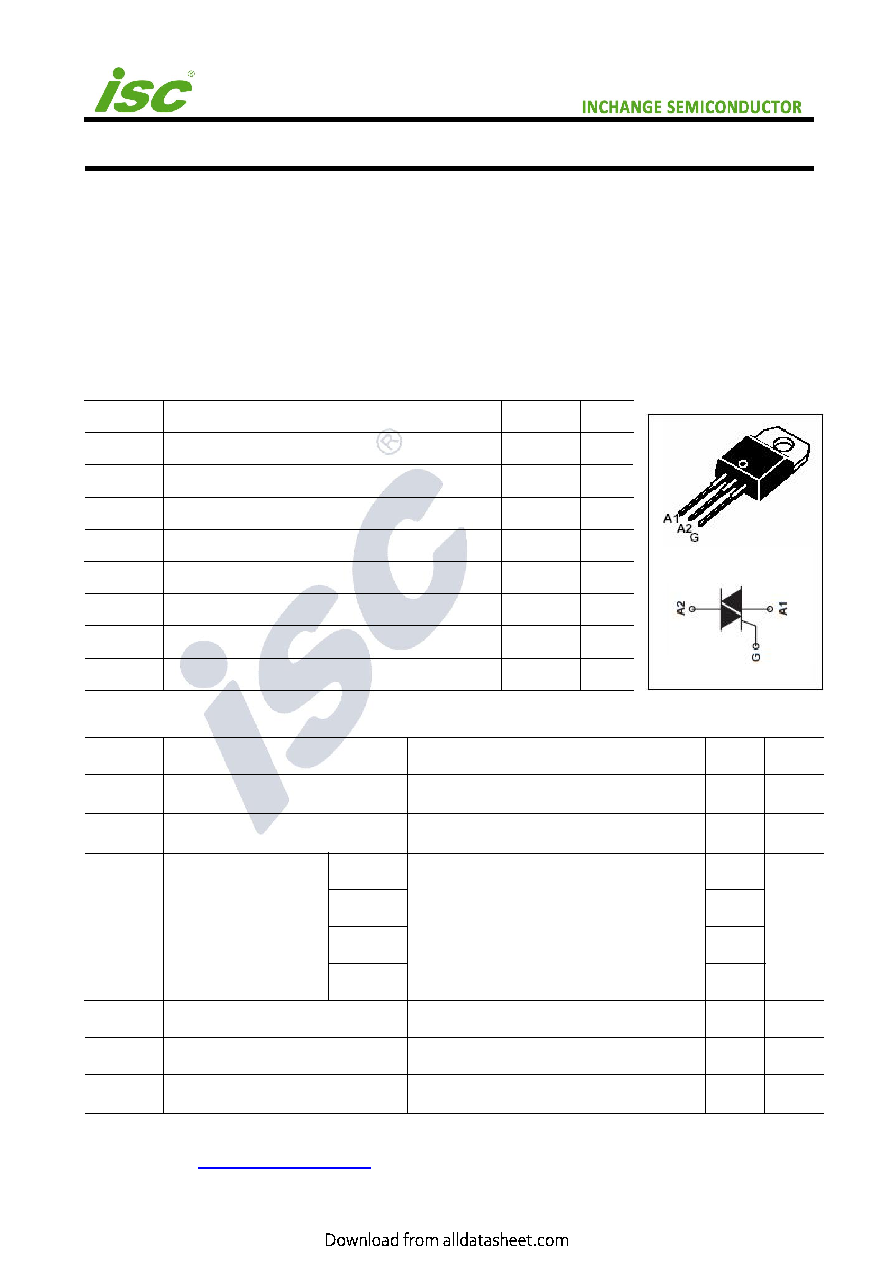

isc Triacs

ISC4A231P

FEATURES

·

With TO-220AB insulated package

·

Suitables for general purpose AC switching. Which can be used as an ON/OFF function in

applications such as static relays, heating regulation,induction motor starting circuits. Or for phase

control operation in light dimmers, motor speed controllers etc.

·

Minimum Lot-to-Lot variations for robust device performance and reliable operation

ABSOLUTE MAXIMUM RATINGS(Ta=25℃)

SYMBOL

PARAMETER

MIN

UNIT

VDRM

Repetitive peak off-state voltage

600

V

VRRM

Repetitive peak reverse voltage

600

V

IT(RMS)

RMS on-state current (full sine wave)Tj=85℃

16

A

ITSM

Non-repetitive peak on-state current tp=20ms

160

A

Tj

Operating junction temperature

110

℃

Tstg

Storage temperature

-45~150

℃

Rth(j-c)

Thermal resistance, junction to case

2.1

℃

/W

Rth(j-a)

Thermal resistance, junction to ambient

60

℃

/W

ELECTRICAL CHARACTERISTICS (TC=25℃ unless otherwise specified)

SYMBOL

PARAMETER

CONDITIONS

MAX

UNIT

IRRM

Repetitive peak reverse current

VR=VRRM,

VR=VRRM, Tj=110℃

0.005

2

mA

IDRM

Repetitive peak off-state current

VD=VDRM,

VD=VDRM, Tj=110℃

0.005

2

mA

IGT

Gate trigger current

Ⅰ

VD=12V; RL= 33Ω

50

mA

Ⅱ

50

Ⅲ

50

Ⅳ

100

IH

Holding current

IGT= 0.5A, Gate Open

50

mA

VGT

Gate trigger voltage all quadrant VD=12V; RL= 33Ω

1.3

V

VTM

On-state voltage

IT= 22.5A; tp= 380μs

1.55

V
