BUL804 Fiches technique(PDF) 1 Page - STMicroelectronics

No de pièce BUL804
Description  HIGH VOLTAGE FAST-SWITCHING NPN POWER TRANSISTOR
PDF  7 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricant  STMICROELECTRONICS [STMicroelectronics]
Site Internet  http://www.st.com
Logo STMICROELECTRONICS - STMicroelectronics

BUL804 Fiches technique(HTML) 1 Page - STMicroelectronics

  BUL804 Datasheet HTML 1Page - STMicroelectronics BUL804 Datasheet HTML 2Page - STMicroelectronics BUL804 Datasheet HTML 3Page - STMicroelectronics BUL804 Datasheet HTML 4Page - STMicroelectronics BUL804 Datasheet HTML 5Page - STMicroelectronics BUL804 Datasheet HTML 6Page - STMicroelectronics BUL804 Datasheet HTML 7Page - STMicroelectronics
Zoom Inzoom in Zoom Outzoom out
 1 / 7 page
background image
1/7
July 2005
n
NPN TRANSISTOR
n
HIGH VOLTAGE CAPABILITY
n
LOW SPREAD OF DYNAMIC PARAMETERS
n
MINIMUM LOT-TO-LOT SPREAD FOR
RELIABLE OPERATION
n
VERY HIGH SWITCHING SPEED
APPLICATIONS
n
DEDICATED FOR PFC SOLUTION IN
HALF-BRIDGE VOLTAGE FED TOPOLOGY
n
ELECTRONIC BALLAST FOR
FLUORESCENT LIGHTING
DESCRIPTION
The device is manufactured using high voltage
Multi Epitaxial Planar technology for high
switching speeds and medium voltage capability.
It uses a Cellular Emitter structure with planar
edge termination to enhance switching speeds
while maintaining the wide RBSOA.
The device is designed for use as PFC in high
frequency ballast half Bridge voltage fed topology.

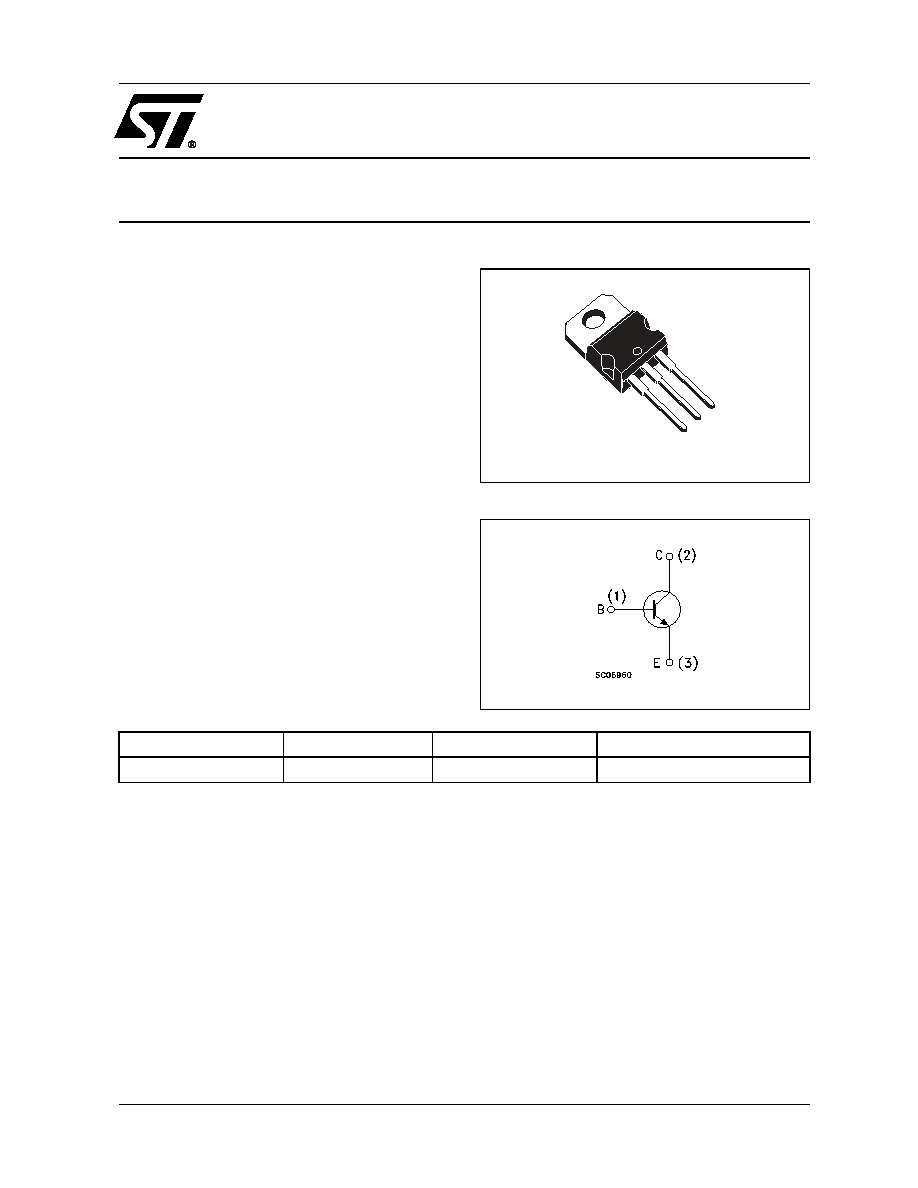

Figure 1: Package
Figure 2: Internal Schematic Diagram
Table 1: Order Codes
1
2
3
TO-220
Part Number
Marking
Package
Packaging
BUL804
BUL804
TO-220
Tube
BUL804
HIGH VOLTAGE FAST-SWITCHING
NPN POWER TRANSISTOR
Rev. 1
