8.15 WRITE DISABLE OPERATION (WRDI, 04h)
The Write Disable (WRDI) instruction resets the WEL bit and disables all write instructions. The WRDI instruction
is not required after the execution of a write instruction, since the WEL bit is automatically reset.

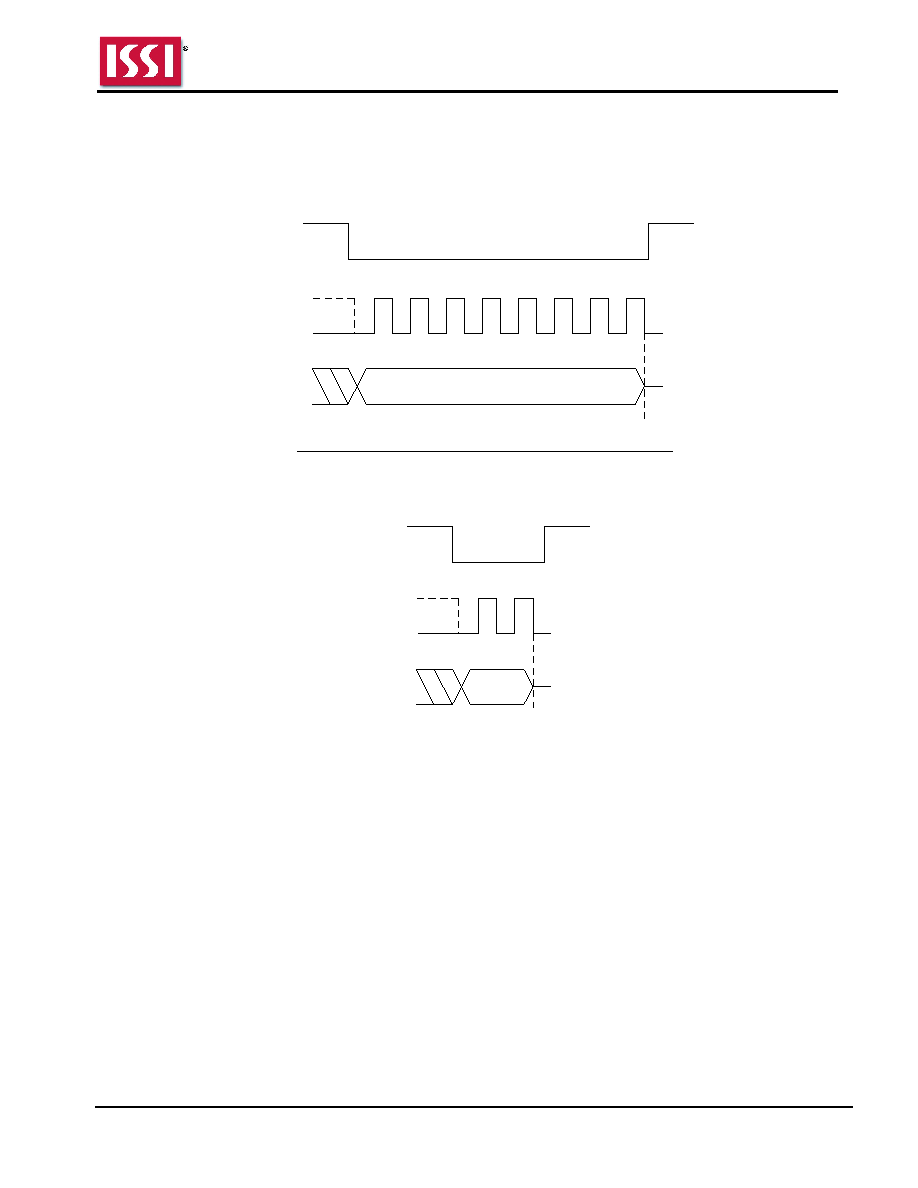

Figure 8.24 Write Disable Sequence In SPI Mode
Instruction = 04h
CE#
SCK
SI
0
1
2
3
4
5
6
7
Mode 3
Mode 0
SO
High Impedance
Figure 8.25 Write Disable Sequence In QPI Mode
04h
CE#
SCK
IO[3:0]
0
1
Mode 3
Mode 0
