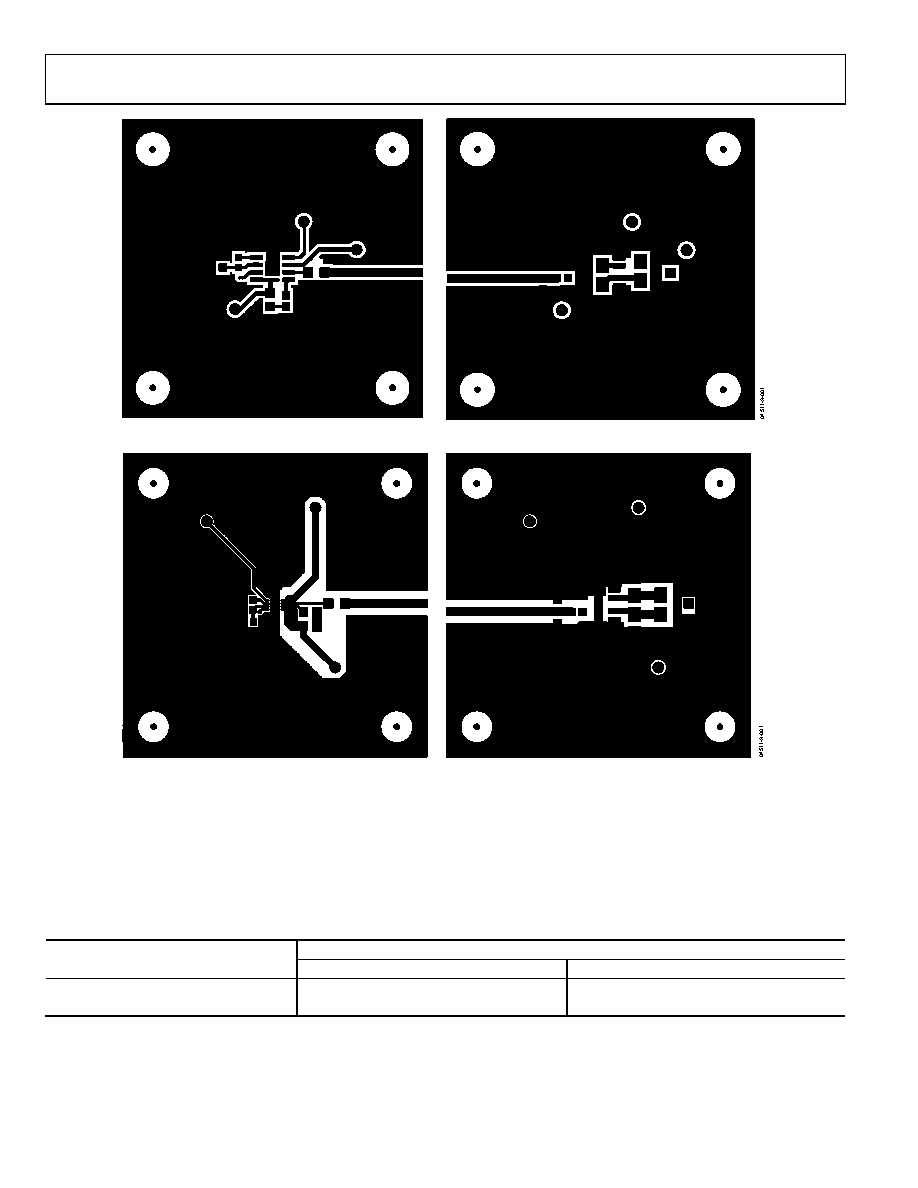

Figure 72. SOIC Evaluation Board Artwork

Figure 73. CSP Evaluation Board Artwork

Evaluation Boards

There are four different evaluation boards available, as shown in Table 7, and an Application Note, AN-720, that explains the use of the

evaluation boards.

Table 7. Evaluation Board Selection Guide

Package Type

Board Configuration

CSP

SOIC

Inverting

EVAL-ADOPAMP-1CSP-I

EVAL-ADOPAMP-1R-IN

Noninverting

EVAL-ADOPAMP-1CSP-N

EVAL-ADOPAMP-1R-NI
