SWC42I-R10KA datasheet(1/2 Pages) TAI-TECH

No de pièce	SWC42I-R10KA

Description	Winding Type Chip Inductor

PDF	2 Pages

Scroll/Zoom	100%

Fabricant	TAI-TECH [TAI-TECH Advanced Electronics Co., Ltd.]

Site Internet	https://www.tai-tech.com.tw/en/

Logo

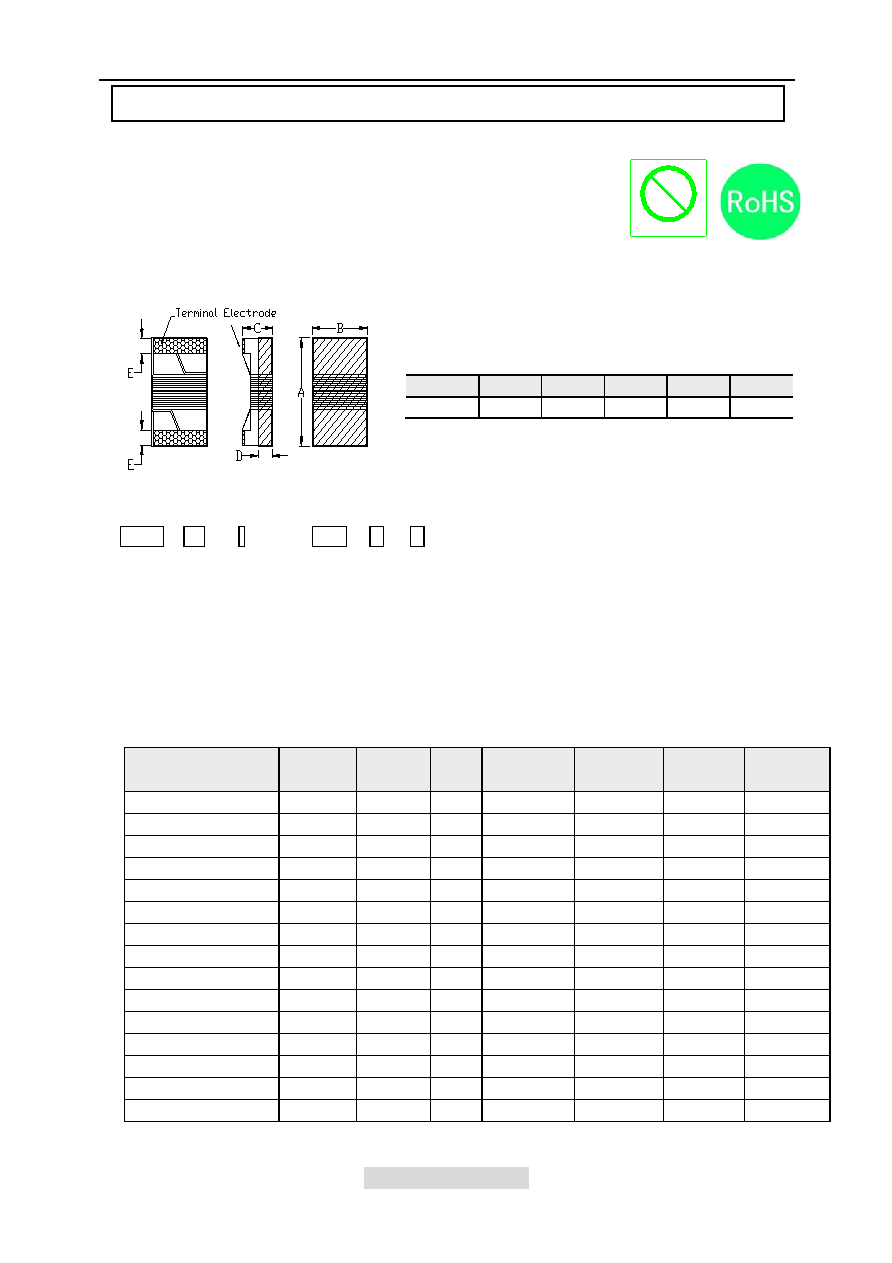

1 / 2 page

TAI-TECH

www.tai-tech.com.tw

1. Features

2. Dimensions

3. Part Numbering

4. Specification

1. Ferrite core wire wound construction.

2. High Reliability due to wire wound type construction.

3. Small footprint as well as low profile.

4. Application for DC power line.

5. 100% Lead(Pb) & Halogen-Free and RoHS compliant.

6. Operating temperature -40~+125℃ (Including self - temperature rise)

SWC

42

I

-

47N

K

A

B

C

D

E

F

A: Series

B: Dimension

L x W

C: Lead free type

D: Inductance

47N=0.047 uH

E: Inductance Tolerance

S=±0.3nH . J=±5%, K=±10%

F: Control S/N

Size

A

B

C

D

E

SWC42I

1.09±0.1

0.60±0.1

0.56±0.1

0.20±0.15

0.23±0.1

Unit:mm

Winding Type Chip Inductor

SWC42I-SERIES

Halogen-free

Halogen

Part Number

Inductance

(nH)

Tolerance

Q

min.

Test Frequency

(Hz)

Rated Current

(mA) max..

DCR

(Ω) max.

SRF

(GHz) min.

SWC42I-1N0□A

1.0

S.J

16

0.1V/250M

1360

0.045

12.7

SWC42I-1N9□A

1.9

S.J

16

0.1V/250M

1040

0.070

11.30

SWC42I-2N0□A

2.0

S.J

16

0.1V/250M

1040

0.070

11.10

SWC42I-2N2□A

2.2

S.J

19

0.1V/250M

960

0.070

10.80

SWC42I-2N4□A

2.4

S.J

15

0.1V/250M

790

0.068

10.50

SWC42I-2N7□A

2.7

S.J

16

0.1V/250M

640

0.120

10.40

SWC42I-3N3□A

3.3

S.J

19

0.1V/250M

840

0.066

7.00

SWC42I-3N6□A

3.6

S.J

19

0.1V/250M

840

0.066

6.80

SWC42I-3N9□A

3.9

S.J

19

0.1V/250M

840

0.066

6.00

SWC42I-4N3□A

4.3

S.J

18

0.1V/250M

700

0.091

6.00

SWC42I-4N7□A

4.7

S.J

15

0.1V/250M

640

0.130

4.77

SWC42I-5N1□A

5.1

S.J

20

0.1V/250M

800

0.083

4.80

SWC42I-5N6□A

5.6

S.J

20

0.1V/250M

760

0.083

4.80

SWC42I-6N2□A

6.2

J.K

20

0.1V/250M

760

0.083

4.80

SWC42I-6N8□A

6.8

J.K

20

0.1V/250M

680

0.083

4.80
