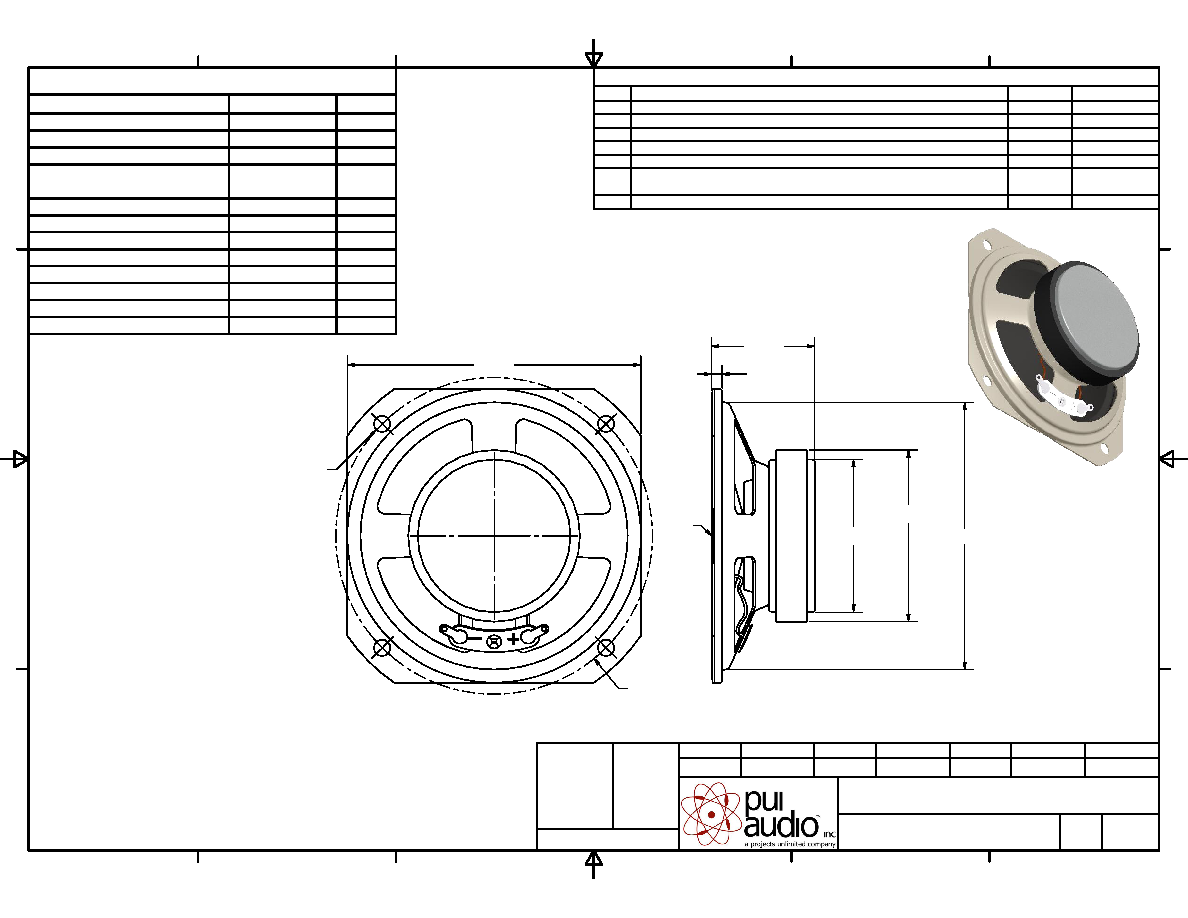

AS07708PS-2-WR-R datasheet(3/3 Pages) PUIAUDIO

3 / 3 page

Speaker

AS07708PS-2-WR-R

B.R.

E.P.

1/28/2009

Checked by

Approved by

Drawn Date

1 / 1

Edition

Sheet

Date

3/30/2006

Date

3/30/2006

Date

3/30/2006

UNLESS OTHERWISE

SPECIFIED:

DIMENSIONS ARE IN

MILLIMETERS,

TOLERANCES

ARE 0.5 AND

ANGLES ARE 3 .

AS07708PS-2-WR-R.idw

SIZE

REVISION HISTORY

LTR

DESCRIPTION

DATE

APPROVED

RELEASED FROM ENGINEERING

3/30/2006

ADDED MOUNTING HOLE DIMENSION

12/19/2007

R.W.

REVISED TO INVENTOR 3-D DRAWING TEMPLATE

1/28/2009

B.R.

REVISED SEVERAL DIMENSIONS AND SPECIFICATIONS

1/24/2011

B.R.

ADDED NOTE 5

8/12/2011

B.R.

REVISED HOLE TO HOLE DIMENSION, ROHS STATUS, SPL

DISTANCE

7/16/2013

M.L.

REVISED OPERATING TEMPERATURE

9/16/2013

M.L.

SPECIFICATIONS

PARAMETERS

VALUES

UNITS

RATED INPUT POWER

MAX INPUT POWER

IMPEDANCE

15%

OHM

OUTPUT SPL @ 1W/.5M

(AT 0.4, 0.6, 0.8, 1.0 KHz)

dBA

DISTORTION (MAX.)

RESONANT FREQUENCY

250

20%

FREQUENCY RANGE

250 ~ 10,000

HOUSING MATERIAL

METAL

CONE MATERIAL

TREATED PAPER

MAGNET MATERIAL

FERRITE

OPERATING TEMPERATURE

-40 ~ +85

WEIGHT

118

grams

THIS DOCUMENT CONTAINS DATA PROPRIETARY TO

PROJECTS UNLIMITED, INC. ANY USE OR

REPRODUCTION, IN ANY FORM, WITHOUT PRIOR

WRITTEN PERMISSION OF PROJECTS UNLIMITED,

INC. IS PROHIBITED.

2003, Projects Unlimited Inc.

NOTES:

1. ALL DIMENSIONS ARE IN MILLIMETERS.

2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL

WITHOUT NOTICE.

3. THIS PART IS RoHS 2011/65/EU COMPLIANT.

4. CONE HAS BEEN TREATED FOR WATER RESISTANCE.

5. BASE SPEAKER PUI# AS07708PS-2-R.

2.7

0.3

0.8

0.3

4.3

0.2 (4)

0.2
