HCM1307-R47-R Fiches technique(PDF) 3 Page - Eaton All Rights Reserved.

No de pièce HCM1307-R47-R
Description  High current power inductors
PDF  5 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricant  EATON [Eaton All Rights Reserved.]
Site Internet  https://www.eaton.com
Logo EATON - Eaton All Rights Reserved.

HCM1307-R47-R Fiches technique(HTML) 3 Page - Eaton All Rights Reserved.

  HCM1307-R47-R Datasheet HTML 1Page - Eaton All Rights Reserved. HCM1307-R47-R Datasheet HTML 2Page - Eaton All Rights Reserved. HCM1307-R47-R Datasheet HTML 3Page - Eaton All Rights Reserved. HCM1307-R47-R Datasheet HTML 4Page - Eaton All Rights Reserved. HCM1307-R47-R Datasheet HTML 5Page - Eaton All Rights Reserved.
Zoom Inzoom in Zoom Outzoom out
 3 / 5 page
background image
3
Technical Data
10433
Effective September 2015
HCM1307
High current power inductors
www.eaton.com/elx

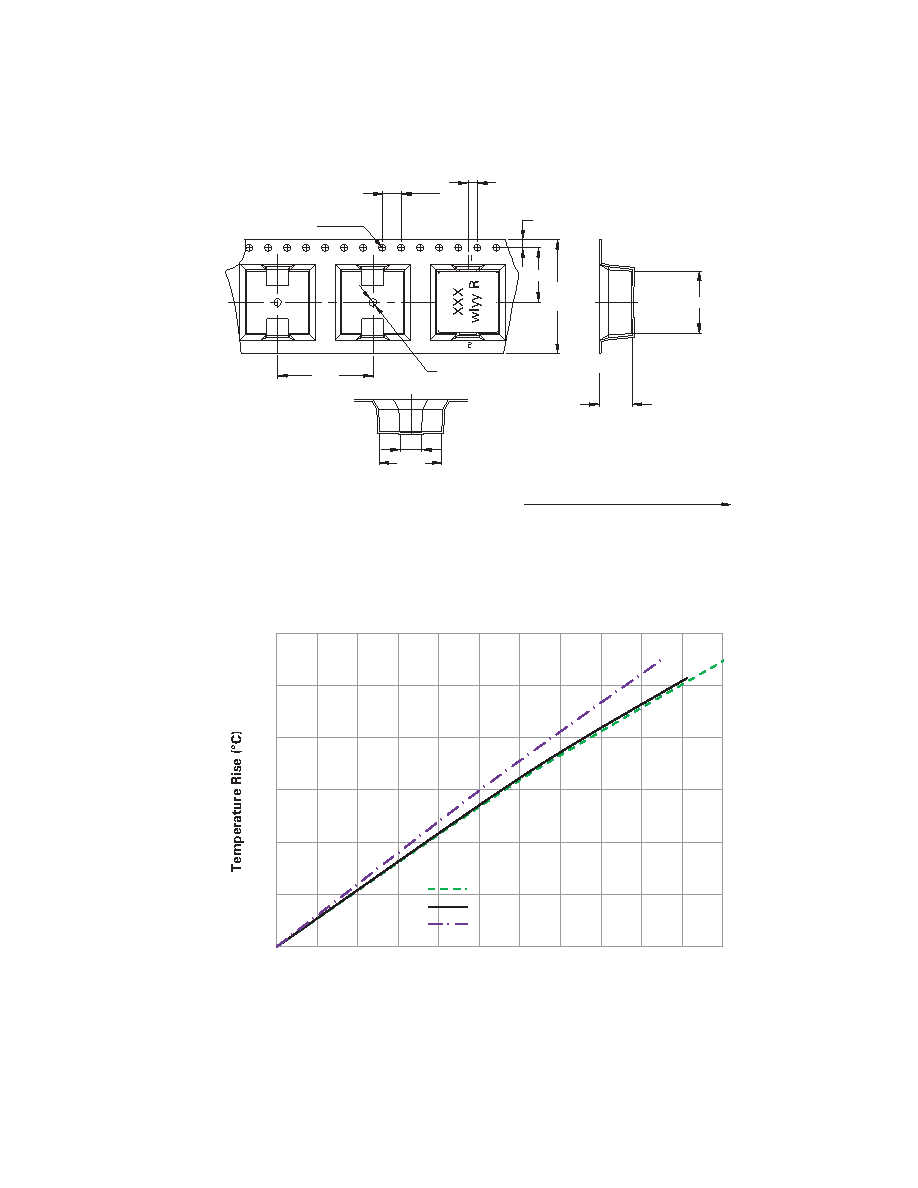

Packaging information (mm)
Supplied in tape and reel packaging, 400 parts per 13” diameter reel
Temperature rise vs. total loss
