L16B40
Preliminary
CMOS IC
UNISONICTECHNOLOGIESCO.,LTD
6 of 7
www.unisonic.com.tw
QW-R125-066.a

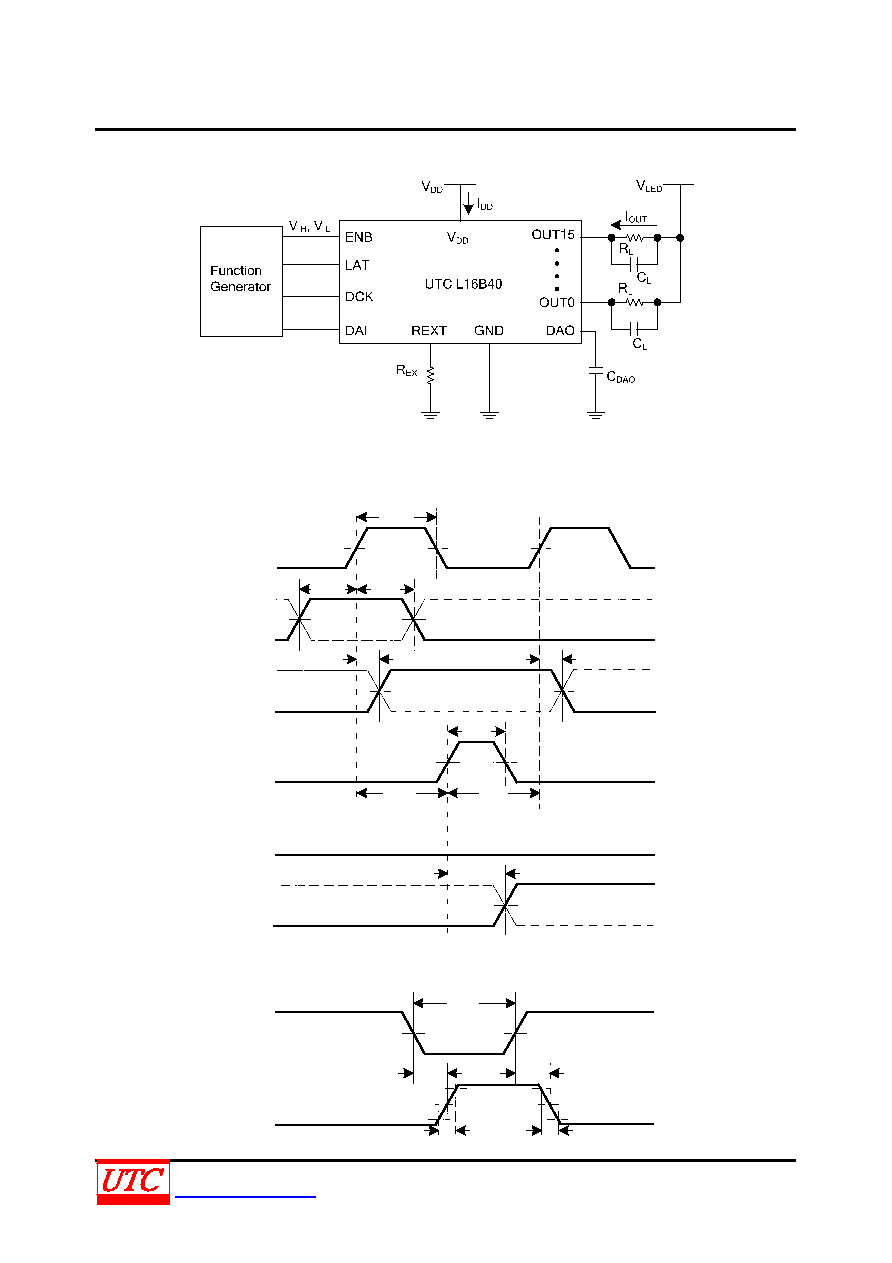

TEST CRICUIT FOR SWITCHING CHARACTERISTICS
TIMING WAVEFORM
tw_DCK
50%
50%
50%
50%
50%
50%
50%
50%
50%
50%
50%
50%
tw_ENB
tpLH2
tpHL2
10%
50%
90%
10%
50%
90%
tor
tof
ENB
OUT15:0
(current)
tsetup_D
thold_D
DCK
1. DCK, DAI, DAO, LAT, ENB, OUT15:0
DAI
tpLH
DAO
LAT
ENB
OUT15:0
(current)
2. ENB, OUT15:0
tpHL
tw_LAT
tsetup_L
thold_L
ENB=low
tpLHT, tpHLT
