16 / 21 page

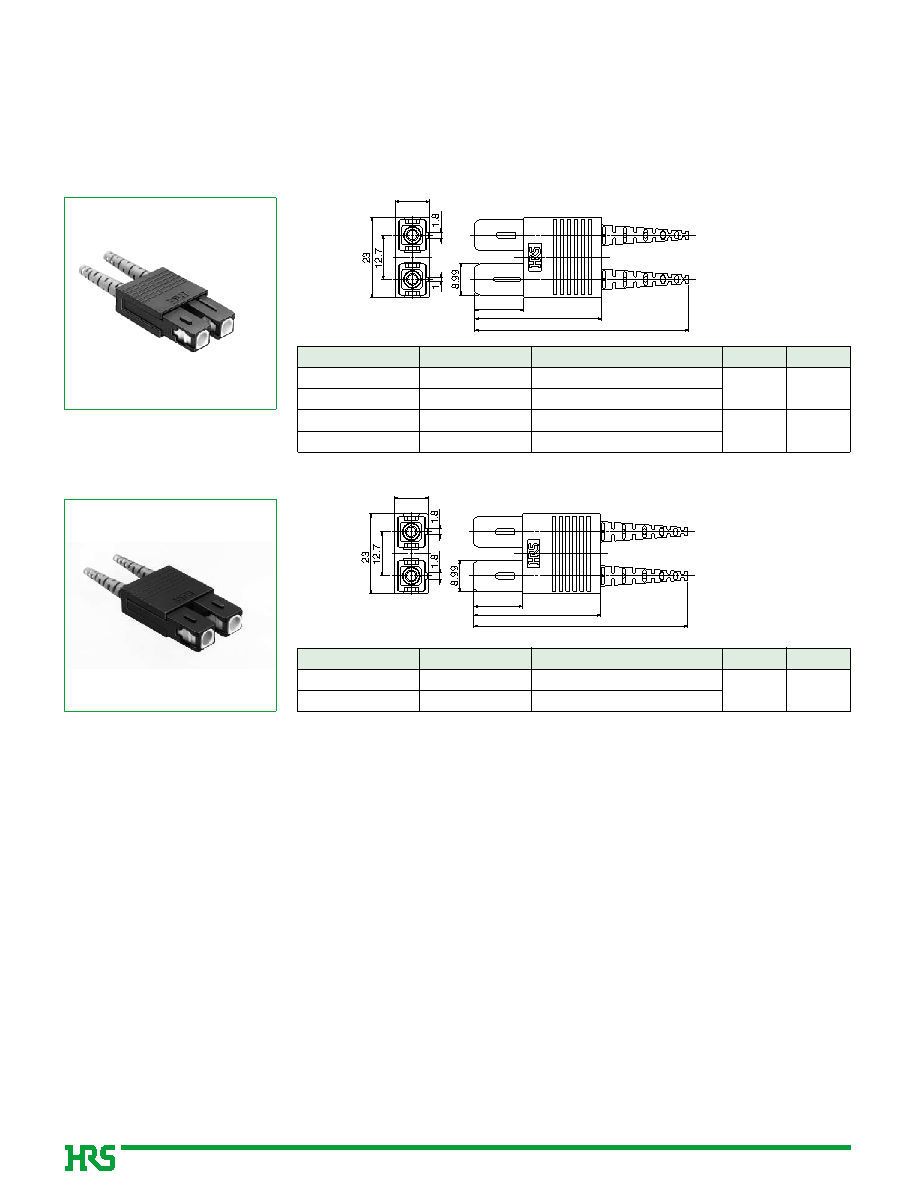

qFor Single Mode

Part Number

CL No.

Applicable cable

Boot color Polishing type

HSCM-2SPH2-B1

704-2100-9

Simplex-2mm dia. cable or dual fiber zip cable

Blue

HSCM-2SPH3-B1

704-2102-4

Simplex-3mm dia. cable or dual fiber zip cable

HSCM-2SPH2-B2

704-2133-8

Simplex-2mm dia. cable or dual fiber zip cable

Light purple

AdPC

HSCM-2SPH3-B2

---------

Simplex-3mm dia. cable or dual fiber zip cable

Part Number

CL No.

Applicable cable

Boot color Polishing type

HSCM-2GPH2-B1

704-2104-0

Simplex-2mm dia. cable or dual fiber zip cable

Blue

HSCM-2GPH3-B1

704-2106-5

Simplex-3mm dia. cable or dual fiber zip cable

qFor Multi-mode

sPlug Housings

14.1

36.7

61.5

9.9

14.1

36.7

61.5

9.9

Complies with ANSI Standard

ANSI X3T9.3 Fibre Channel Physical and Signaling Interface

sFerrules

Convertional SC ferrules.

Refer to page 33 for details.

sAdapters

F type SC adapters.

Refer to page 40 for details.
