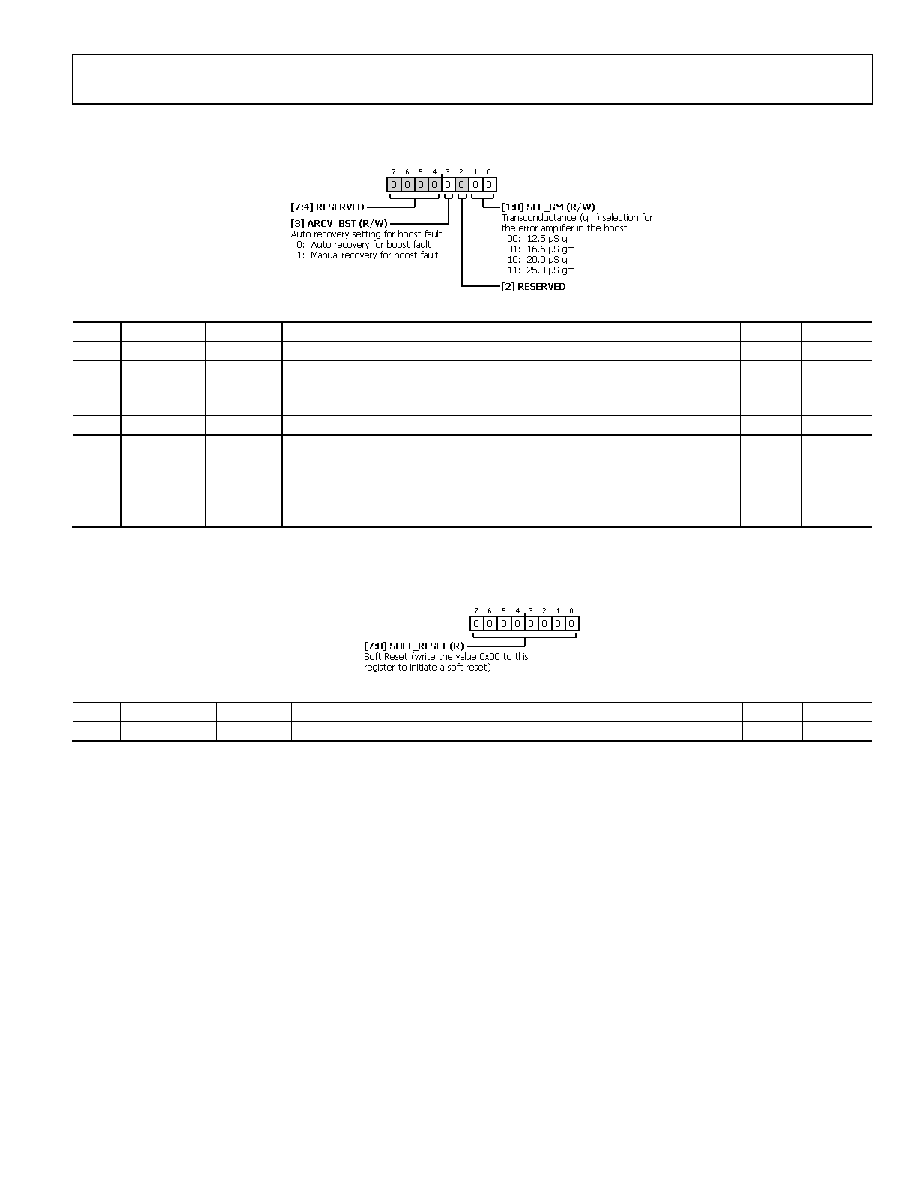

background image
Data Sheet
SSM4567
Rev. 0| Page 51 of 52
BOOST CONTROL 2 REGISTER
Address: 0x16, Reset: 0x00, Name: BOOST_CTRL_2
Table 48. Bit Descriptions for BOOST_CTRL_2
Bits
Bit Name
Settings
Description
Reset
Access
[7:4]
RESERVED
Reserved
0x0
R/W
3
ARCV_BST
Autorecovery setting for boost fault
0x0
R/W
0
Autorecovery for boost fault
1
Manual recovery for boost fault
2
RESERVED
Reserved
0x0
R/W
[1:0]
SEL_GM
Transconductance (gm) selection for the error amplifier in the boost
0x0
R/W
00
12.5 μS gm
01
16.6 μS gm
10
20.0 μS gm
11
25.0 μS gm
SOFT RESET REGISTER
Address: 0xFF, Reset: 0x00, Name: SOFT_RESET
Table 49. Bit Descriptions for SOFT_RESET
Bits
Bit Name
Settings
Description
Reset
Access
[7:0]
SOFT_RESET
Soft Reset (write the value 0x00 to this register to initiate a soft reset)
0x0
R
