ADL5513

Data Sheet

Rev. A | Page 8 of 25

PIN CONFIGURATION AND FUNCTION DESCRIPTIONS

12

11

10

1

3

4

9

2

VPOS

INHI

INLO

VPOS

VOUT

VSET

COMM

TADJ

NOTES

1. NC = NO CONNECT.

2. THE EXPOSED PAD IS INTERNALLY

CONNECTED TO COMM; SOLDER TO

A LOW IMPEDANCE GROUND PLANE.

ADL5513

TOP VIEW

(Not to Scale)

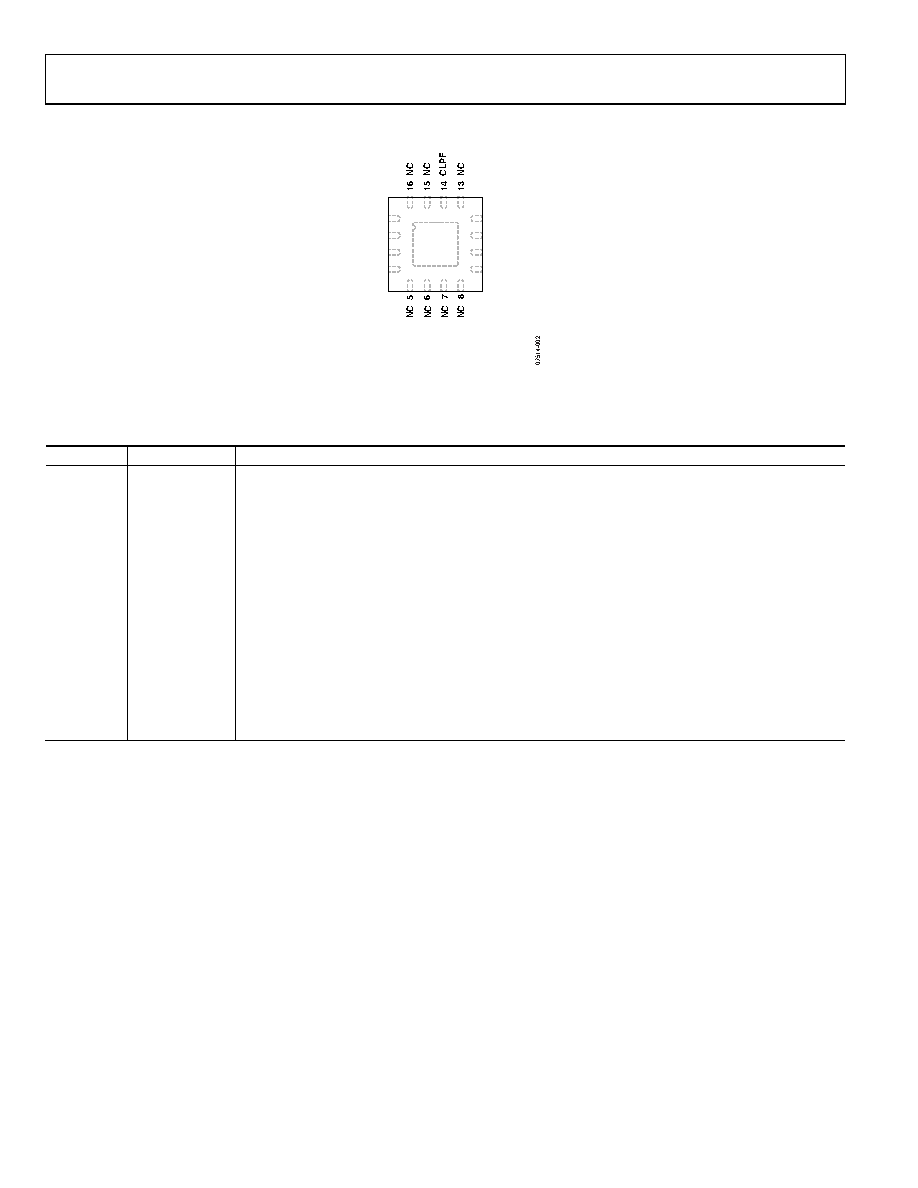

Figure 2. Pin Configuration

Table 3. Pin Function Descriptions

Pin No.

Mnemonic

Description

1, 4

VPOS

Positive Supply Voltage, 2.7 V to 5.5 V.

2

INHI

RF Input. AC-coupled RF input.

3

INLO

RF Common for INHI. AC-coupled RF common.

5, 6, 7, 8,

13, 15, 16

NC

No Connect. These pins can be left open or be soldered to a low impedance ground plane.

9

TADJ

Temperature Compensation Adjustment. Frequency-dependent temperature compensation is set by

applying a specified voltage to the pin. The TADJ pin has dual functionality as a power-down pin, PWDN.

10

COMM

Device Common.

11

VSET

Setpoint Input for Operation in Controller Mode. To operate in RSSI mode short VSET to VOUT.

12

VOUT

Logarithmic/Error Output.

14

CLPF

Loop Filter Capacitor Pin. In measurement mode, this capacitor pin sets the pulse response time and video

bandwidth. In controller mode, the capacitance on this node sets the response time of the error

amplifier/integrator.

15 (EPAD)

Exposed Pad

(EPAD)

Internally connected to COMM; solder to a low impedance ground plane.
