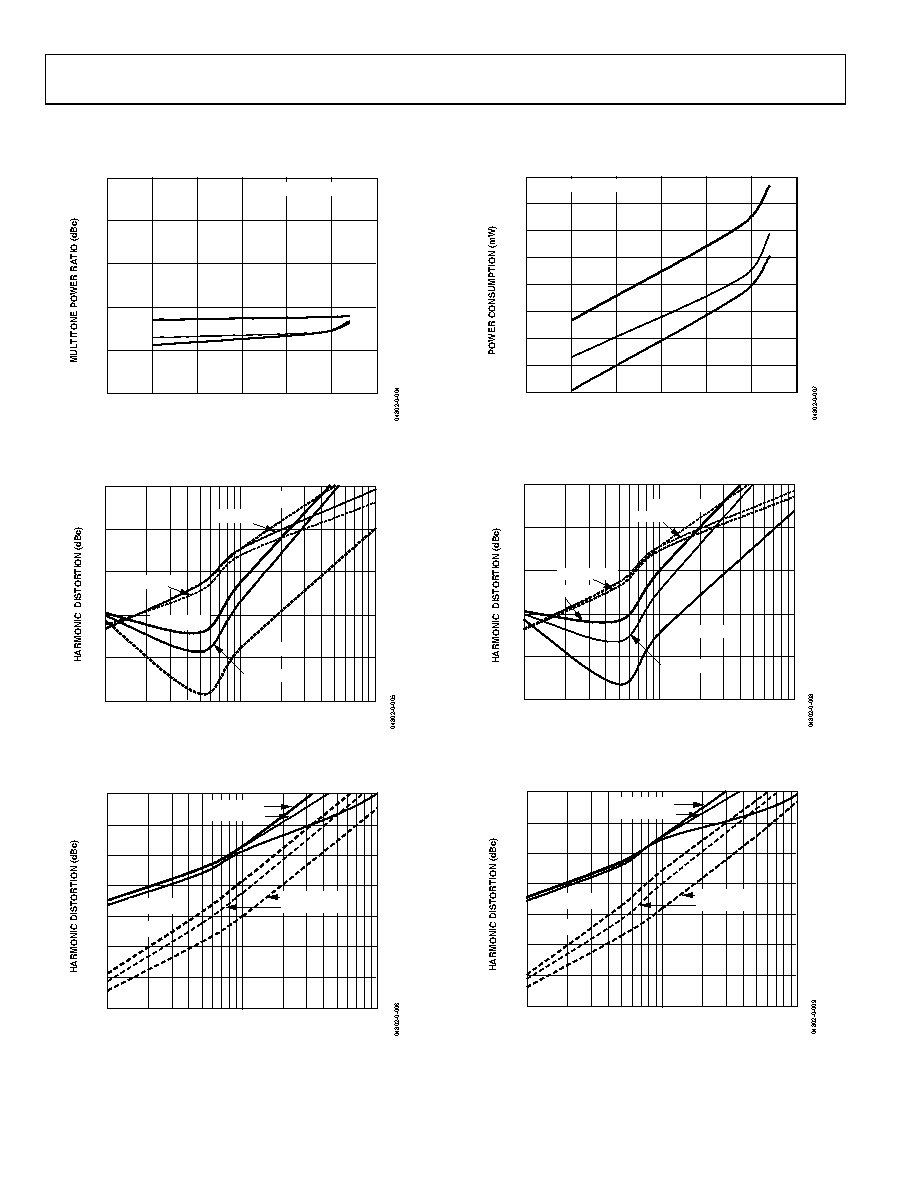

TYPICAL PERFORMANCE CHARACTERISTICS

PD (0, 0)

PD (0, 1)

OUTPUT POWER (dBm)

–70

–55

–50

–45

–65

–60

PD (1, 0)

CREST FACTOR = 5.45

Figure 4. MTPR vs. Output Power (1.75 MHz Empty Bin)

ADSL/ADSL2+ Circuit (Figure 32)

VS = ±12 V, RLOAD = 100 Ω, CF = 5.45

–100

–90

–80

–70

–60

–50

0.1

FREQUENCY (MHz)

HD3 PD (0, 1)

HD2 PD (0, 0)

HD2 PD (0, 1)

HD3 PD (0, 0)

HD3 PD (1, 0)

HD2 PD (1, 0)

Figure 5. Harmonic Distortion vs. Frequency

Dual Differential Driver Circuit (Figure 30)

VS = ±12 V, RLOAD = 100 Ω, G = +5, VOUT = 2 V p-p

FREQUENCY (MHz)

0.1

–120

–80

–70

–50

–110

–90

–100

–60

HD2 PD (1, 0)

HD2 PD (0, 1)

HD3 PD (0, 0)

HD3 PD (0, 1)

HD2 PD (0, 0)

HD3 PD (1, 0)

Figure 6. Harmonic Distortion vs. Frequency

Quad Op Amp Circuit (Figure 29)

VS = ±12 V, RLOAD = 100 Ω, G = +5, VOUT = 2 V p-p

OUTPUT POWER (dBm)

550

600

650

700

750

800

850

900

950

PD (0, 0)

PD (1, 0)

PD (0, 1)

CREST FACTOR = 5.45

Figure 7. Power Consumption vs. Output Power (26 kHz to 2.2 MHz)

ADSL/ADSL2+ Circuit (Figure 32)

VS = ±12 V, RLOAD = 100 Ω, CF = 5.45

–100

–90

–80

–70

–60

–50

0.1

FREQUENCY (MHz)

HD3 PD (0, 0)

HD2 PD (0, 0)

HD2 PD (0, 1)

HD2 PD (1, 0)

HD3 PD (1, 0)

HD3 PD (0, 1)

Figure 8. Harmonic Distortion vs. Frequency

Dual Differential Driver Circuit (Figure 30)

VS = ±5 V, RLOAD = 100 Ω, G = +5, VOUT = 2 V p-p

FREQUENCY (MHz)

0.1

–120

–80

–70

–50

–110

–90

–100

–60

HD2 PD (1, 0)

HD2 PD (0, 1)

HD3 PD (0, 0)

HD3 PD (0, 1)

HD2 PD (0, 0)

HD3 PD (1, 0)

Figure 9. Harmonic Distortion vs. Frequency

Quad Op Amp Circuit (Figure 29)

VS = ±5 V, RLOAD = 100 Ω, G = +5, VOUT = 2 V p-p
