General Note
TT Electronics reserves the right to make changes in product specification without
notice or liability. All information is subject to TT Electronics’ own data and is
considered accurate at time of going to print.
OP550, OP552, OP555, OP560, OP565,
OP750 Series
Issue A
08/2016
Page 5
OPTEK Technology, Inc.
1645 Wallace Drive, Carrollton, TX 75006|Ph: +1 972 323 2200
www.optekinc.com | www.ttelectronics.com

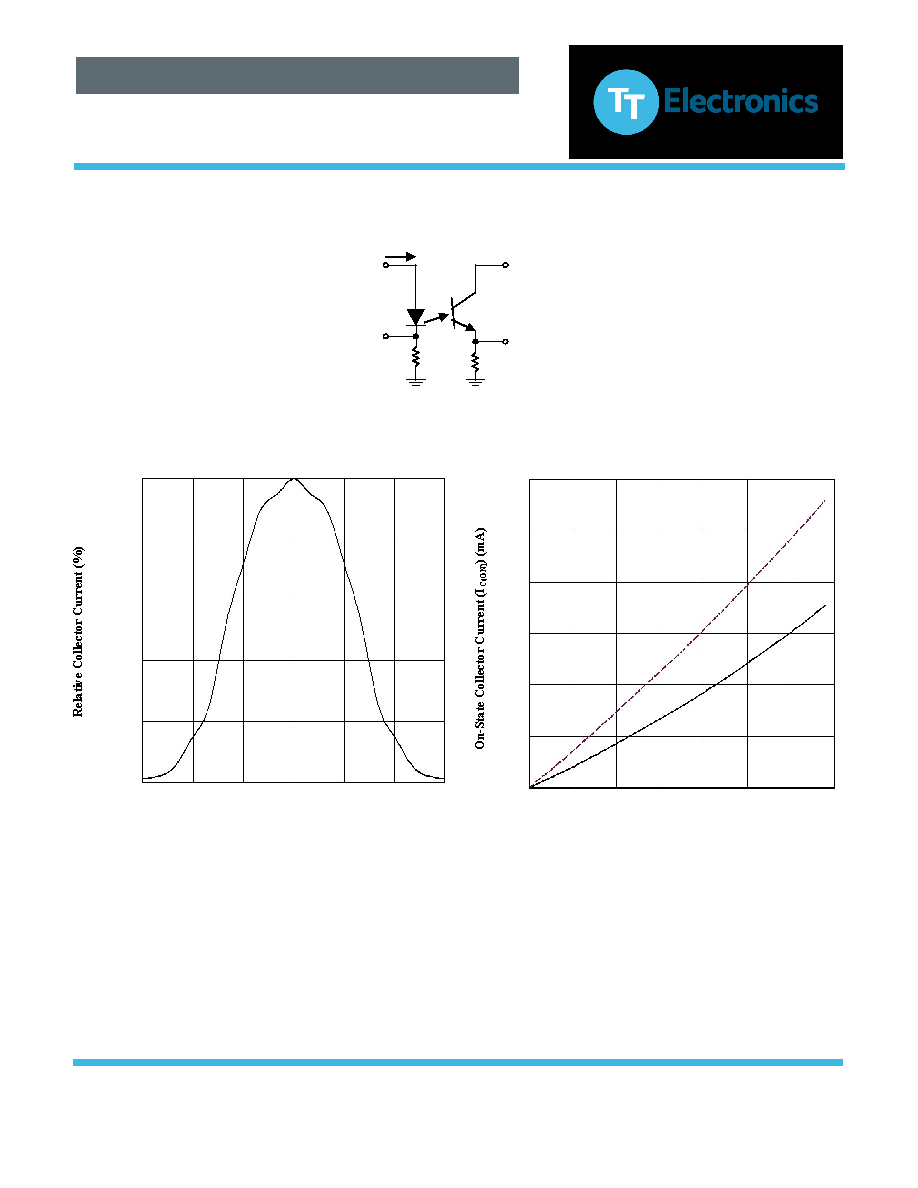

Performance
OP552 - Angular Response
20
40
60
80
100
Angular Displacement (Degrees)
-45
-30
-15
0
15
30
45
Irradiance (EE) (mW/cm2)
0
0.5
1.0
2.0
1.5
2.5
3.0
3.5
2
4
6
8
10
12
λ = 935 nm
λ = 880 nm
OP552 - On-State Collector Current
vs Irradiance
100
RL
VCC = 5 V
IF
Adjust IF to obtain
VRL
Switching Test Circuit
