ATS-1043-C2-R0 datasheet(1/1 Pages) ATS

No de pièce	ATS-1043-C2-R0

Description	High Performance Heat Sinks

PDF	1 Pages

Scroll/Zoom	100%

Fabricant	ATS [Advanced Thermal Solutions, Inc.]

Site Internet	http://www.qats.com

Logo

1 / 1 page

Product Details

DIMENSION A

DIMENSION B

DIMENSION C

DIMENSION D

INTERFACE MATERIAL

FINISH

Notes:

1)

Dimension C = heat sink height from bottom of the base to the top of the fin field.

2)

Thermal performance data are provided for reference only. Actual performance may vary

by application.

3)

ATS reserves the right to update or change its products without notice to improve the

design or performance.

4)

Contact ATS to learn about custom options available.

thermal Performance

For more information, to find a distributor or to place an order, visit www.qats.com or

call: 781.769.2800 (North America); +31 (0) 3569 84715 (Europe).

ATS PART # ATS-1043-C2-R0

Features & Benefits

maxiFLoWtM Cross Cut

High Performance Heat sinks

with Metal Push Pin

REV3_052912

AIR VELOCITy

THERMAL RESISTANCE (

°C/w UNDUCTED)

FT/MIN

M/S

AIR FLOW STRAIGHT

AIR FLOW SIDEWAYS

200

1.0

300

1.5

2.8

400

2.0

2.1

500

2.5

1.6

600

3.0

1.3

1.9

1.6

1.3

1.1

1.0

3.6

» For larger heat sinks and higher pre-loads, push pins with

compression springs are an effective mounting choice. The push

pin has a flexible barb at the end that is designed to engage with

a pre-drilled hole in a PWB. The compression spring adds the

necessary force to hold the assembly together. Provides better

thermal performance than comparable size straight fin and pin fin

heat sinks.

» Features proven high performance maxiFLOW™ heat sink spread fin array to

maximize cooling surfaces.

» Ideal for tight spaced components where wider heat sinks can’t be used.

» Provided with pre-assembled thermal interface material centered on base.

» Brass pushpin with steel compression spring.

» Reccomended through hole size in PCB is 3.00 mm.

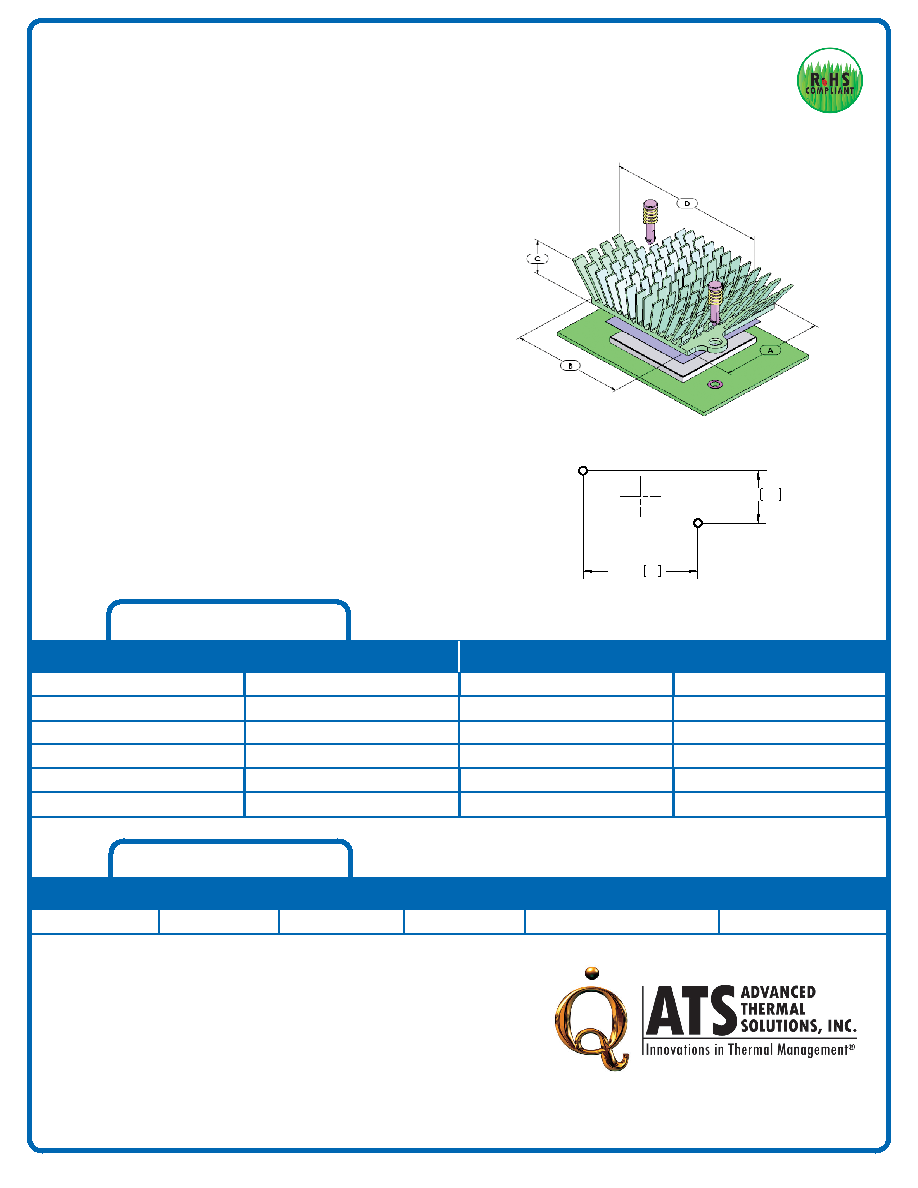

*Image above is for illustration purposes only.

20.02 .788

50.8

2.0

HOLE PATTERN B

41 mm

45 mm

25 mm

79 mm

CHOMERICS T766

GREEN ANODIZED

DIMENSION A

DIMENSION B

DIMENSION C

DIMENSION D

INTERFACE MATERIAL

FINISH
