Continuous Pulse of Pulse Withstanding Chip Resistor (PWR)

Continuous Pulse of Pulse Withstanding Chip Resistor (PWR)

Pulse Voltage of Chip Resistor (PWR)

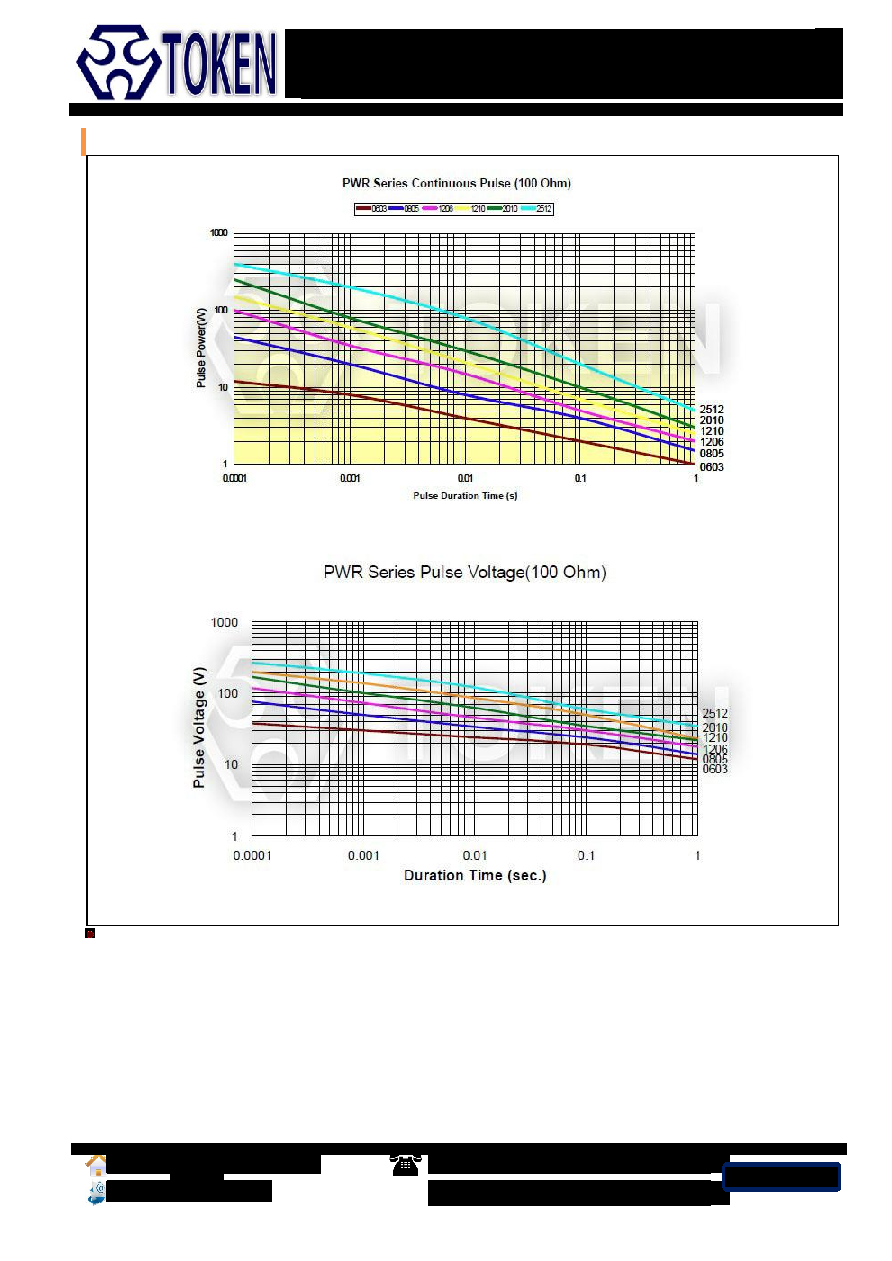

Note: The continuous load graph was obtained by applying repetitive rectangular pulses where the pulse period was adjusted

so that the average power dissipated in the resistor was equal to its rated power at 70℃. Again the limit of acceptance was a

shift in resistance of less than 1% from the initial value.
