AD8232
Data Sheet
Rev. B | Page 10 of 28

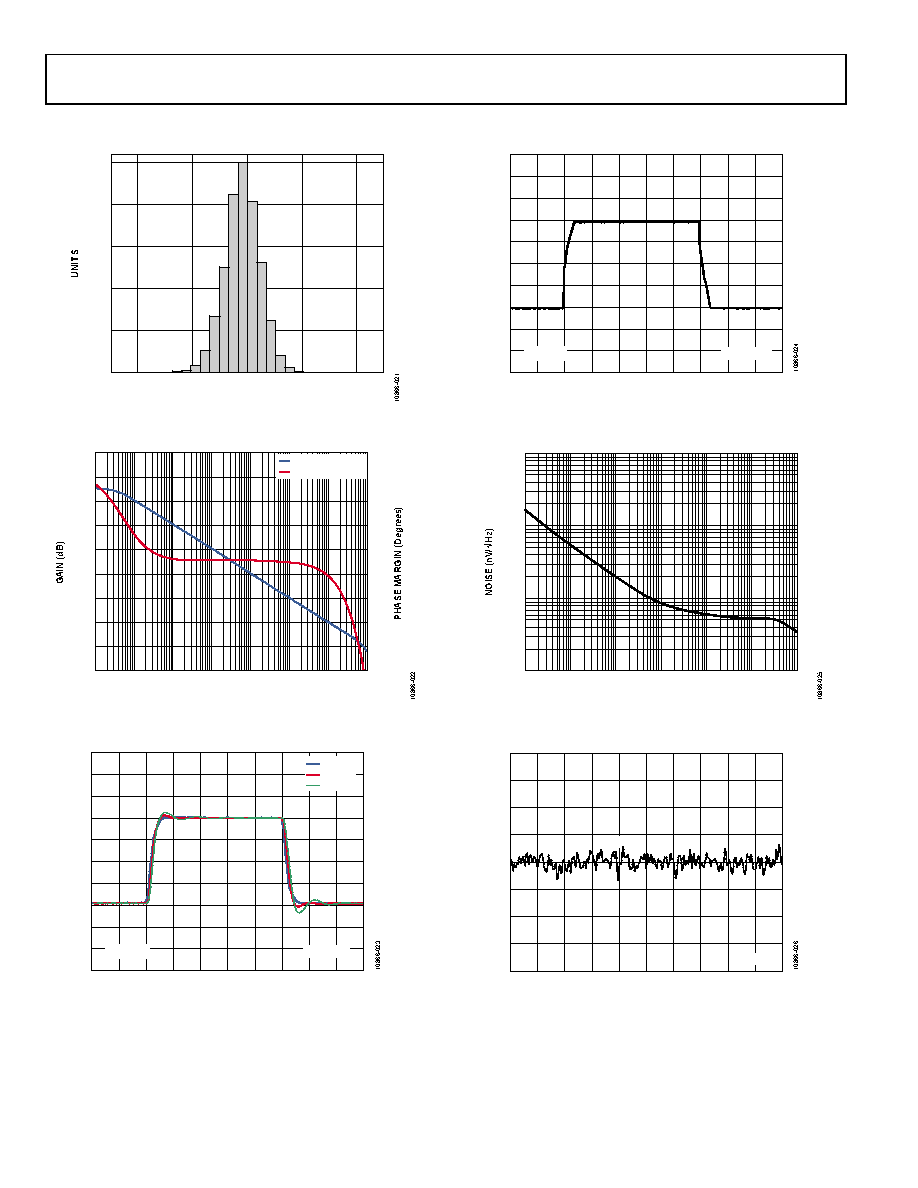

OPERATIONAL AMPLIFIER PERFORMANCE CURVES
Figure 21. Operational Amplifier Offset Distribution
Figure 22. Operational Amplifier Open-Loop Gain and Phase vs.
Frequency
Figure 23. Operational Amplifier Small Signal Response for
Various Capacitive Loads
Figure 24. Operational Amplifier Large Signal Transient Response
Figure 25. Operational Amplifier Voltage Spectral Noise Density vs. Frequency
Figure 26. Operational Amplifier 0.1 Hz to 10 Hz Noise
1000
200
400
600
800
0
–4
–2
0
4
2
OFFSET VOLTAGE (mV)
140
–40
180
0
0.1
1M
100k
10k
1k
100
10
1
FREQUENCY (Hz)
20
40
60
80
100
120
140
160
–20
0
20
40
60
80
100
120
GAIN
PHASE MARGIN
50mV/DIV
10µS/DIV
22pF
470pF
1nF
100µV/DIV
0.5V/DIV
10k
1k
100
10
0.1
1
10
100k
10k
1k
100
FREQUENCY (Hz)
5µV/DIV
1s/DIV
