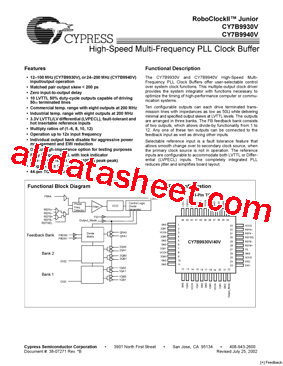

Functional Description
The CY7B9930V and CY7B9940V High-Speed Multifrequency PLL Clock Buffers offer user-selectable control over system clock functions. This multiple output clock driver provides the system integrator with functions necessary to optimize the timing of high performance computer or communication systems.

Features
■ 12–100 MHz (CY7B9930V), or 24–200 MHz (CY7B9940V) input/output operation
■ Matched pair output skew < 200 ps
■ Zero input-to-output delay
■ 10 LVTTL 50% duty-cycle outputs capable of driving 50ω terminated lines
■ Commercial temperature range with eight outputs at 200 MHz
■ Industrial temperature range with eight outputs at 200 MHz
■ 3.3V LVTTL/LV differential (LVPECL), fault-tolerant and hot insertable reference inputs
■ Multiply ratios of (1–6, 8, 10, 12)
■ Operation up to 12x input frequency
■ Individual output bank disable for aggressive power management and EMI reduction
■ Output high impedance option for testing purposes
■ Fully integrated PLL with lock indicator
■ Low cycle-to-cycle jitter (<100 ps peak-peak)
■ Single 3.3V ± 10% supply
■ 44-pin TQFP package
