Section 12 8-Bit Timers
Rev. 3.00 Jan 18, 2006 page 379 of 1044
REJ09B0280-0300

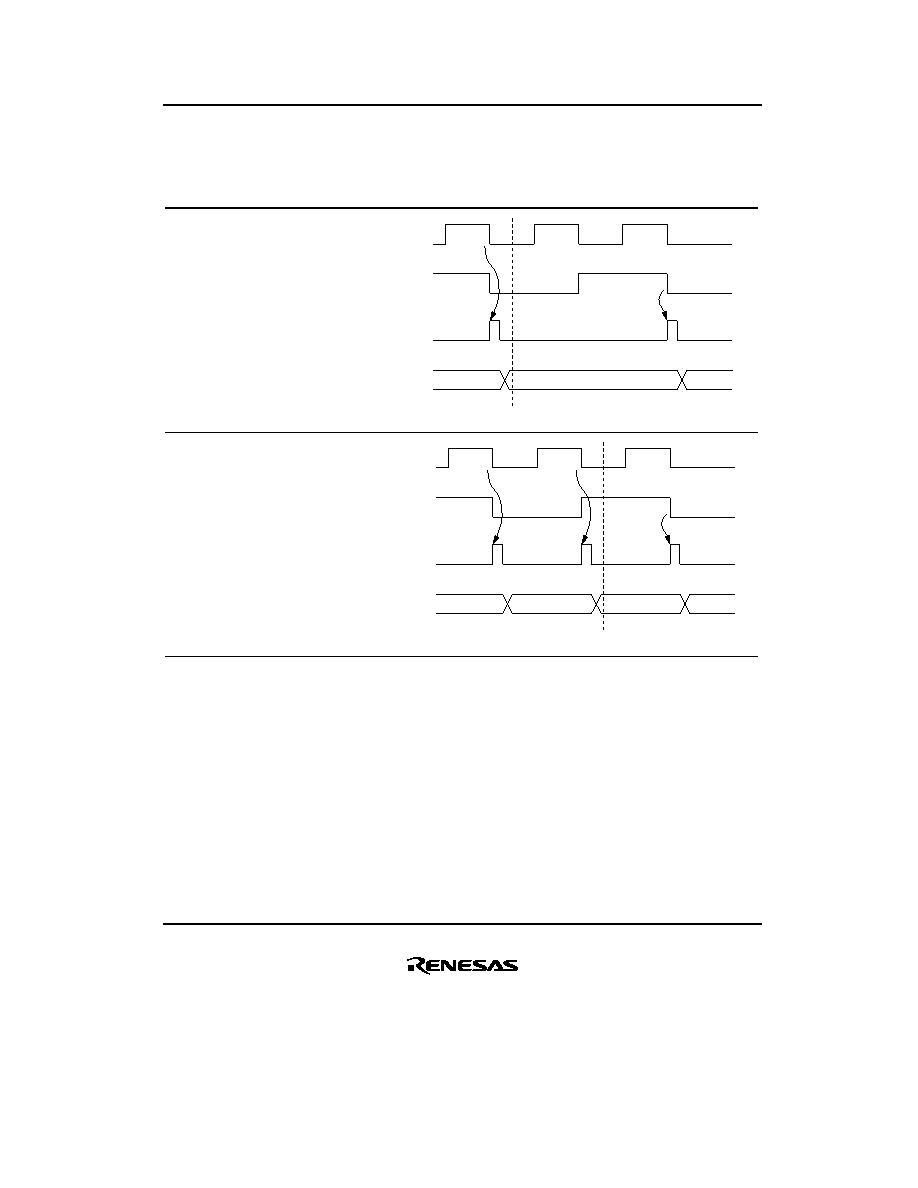

Table 12.8
Switching of Internal Clock and TCNT Operation
No.
Timing of Switchover
by Means of CKS1
and CKS0 Bits
TCNT Clock Operation
1
Switching from low
to low*
1
Clock before
switchover
Clock after
switchover
TCNT clock
TCNT
CKS bit rewrite
N
N + 1
2
Switching from low
to high*
2
Clock before
switchover
Clock after
switchover
TCNT clock
TCNT
CKS bit rewrite
N
N + 1
N + 2
